CPLDs (Complex Programmable Logic Devices)
Review CPLDs (Complex Programmable Logic Devices) Embedded components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LC5256MV-5F256IIC CPLD 256MC 5NS 256FPBGA |
2,389 |
|
Datasheet | ispXPLD® 5000MV | 256-BGA | Tray | Obsolete | Not Verified | In System Programmable | 5 ns | 3V ~ 3.6V | 8 | 256 | - | 141 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 256-FPBGA (17x17) |
|
|
LC5256MV-75F256CIC CPLD 256MC 7.5NS 256FPBGA |
1,473 |
|
Datasheet | ispXPLD® 5000MV | 256-BGA | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 8 | 256 | - | 141 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 256-FPBGA (17x17) |
|
|
LC5256MV-75F256IIC CPLD 256MC 7.5NS 256FPBGA |
3,200 |
|
Datasheet | ispXPLD® 5000MV | 256-BGA | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 8 | 256 | - | 141 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 256-FPBGA (17x17) |
|
LC5512MB-45F256CIC CPLD 512MC 4.5NS 256FPBGA |
2,579 |
|
Datasheet | ispXPLD® 5000MB | 256-BGA | Tray | Obsolete | Not Verified | In System Programmable | 4.5 ns | 2.3V ~ 2.7V | 16 | 512 | - | 193 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 256-FPBGA (17x17) |
|
|
LC5512MB-75F256CIC CPLD 512MC 7.5NS 256FPBGA |
2,298 |
|
Datasheet | ispXPLD® 5000MB | 256-BGA | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 2.3V ~ 2.7V | 16 | 512 | - | 193 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 256-FPBGA (17x17) |
|
|
LC5512MB-75F256IIC CPLD 512MC 7.5NS 256FPBGA |
2,752 |
|
Datasheet | ispXPLD® 5000MB | 256-BGA | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 2.3V ~ 2.7V | 16 | 512 | - | 193 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 256-FPBGA (17x17) |
|
|
LC5512MC-75FN256CIC CPLD 512MC 7.5NS 256FPBGA |
1,866 |
|
Datasheet | ispXPLD® 5000MC | 256-BGA | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 1.65V ~ 1.95V | 16 | 512 | - | 193 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 256-FPBGA (17x17) |
|

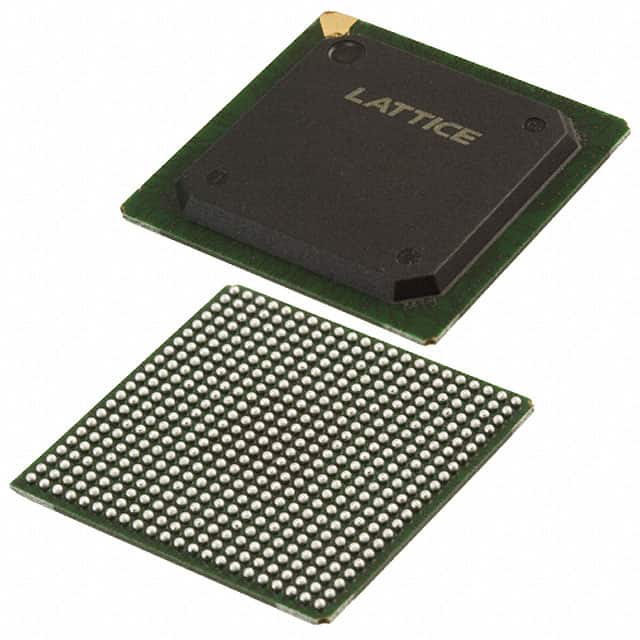

LC5512MV-45F484CIC CPLD 512MC 4.5NS 484FPBGA |
4,075 |
|
Datasheet | ispXPLD® 5000MV | 484-BBGA | Tray | Obsolete | Not Verified | In System Programmable | 4.5 ns | 3V ~ 3.6V | 16 | 512 | - | 253 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 484-FPBGA (23x23) |
|

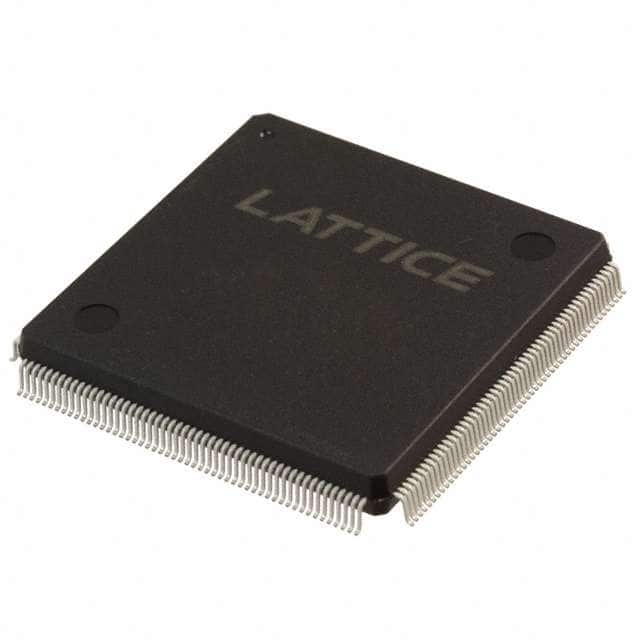

LC5512MV-45Q208CIC CPLD 512MC 4.5NS 208QFP |
1,777 |
|
Datasheet | ispXPLD® 5000MV | 208-BFQFP | Tray | Obsolete | Not Verified | In System Programmable | 4.5 ns | 3V ~ 3.6V | 16 | 512 | - | 149 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 208-PQFP (28x28) |
|
|
LC5512MV-75F256CIC CPLD 512MC 7.5NS 256FPBGA |
3,661 |
|
Datasheet | ispXPLD® 5000MV | 256-BGA | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 16 | 512 | - | 193 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 256-FPBGA (17x17) |
Frequently Asked Questions
What are CPLDs (Complex Programmable Logic Devices) components used for?
CPLDs (Complex Programmable Logic Devices) components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right CPLDs (Complex Programmable Logic Devices) part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find CPLDs (Complex Programmable Logic Devices) parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
