CPLDs (Complex Programmable Logic Devices)
Review CPLDs (Complex Programmable Logic Devices) Embedded components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EPM7128SQC160-15ESIC CPLD 128MC 15NS 160QFP |
2,177 |
|
Datasheet | MAX® 7000S | 160-BQFP | Tray | Obsolete | Not Verified | In System Programmable | 15 ns | 4.75V ~ 5.25V | 8 | 128 | 2500 | 100 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 160-PQFP (28x28) |
|
|
EPM7128SQC160-15YYIC CPLD 128MC 15NS 160QFP |
3,895 |
|
Datasheet | MAX® 7000S | 160-BQFP | Tray | Obsolete | Not Verified | In System Programmable | 15 ns | 4.75V ~ 5.25V | 8 | 128 | 2500 | 100 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 160-PQFP (28x28) |
|
|
EPM7128SQC160-7YYIC CPLD 128MC 7.5NS 160QFP |
3,943 |
|
Datasheet | MAX® 7000S | 160-BQFP | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 4.75V ~ 5.25V | 8 | 128 | 2500 | 100 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 160-PQFP (28x28) |
|
EPM7128SQCI100-10IC CPLD 128MC 10NS 100QFP |
3,033 |
|
Datasheet | MAX® 7000S | 100-BQFP | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 4.75V ~ 5.25V | 8 | 128 | 2500 | 84 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-PQFP (20x14) |
|
EPM7128STI100-10NGIC CPLD 128MC 10NS 100TQFP |
2,337 |
|
Datasheet | MAX® 7000S | 100-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 4.5V ~ 5.5V | 8 | 128 | 2500 | 84 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
EPM7160EQC100-10YYIC CPLD 160MC 10NS 100QFP |
1,585 |
|
Datasheet | MAX® 7000 | 100-BQFP | Tray | Obsolete | Not Verified | EE PLD | 10 ns | 4.75V ~ 5.25V | 10 | 160 | 3200 | 84 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-PQFP (20x14) |
|

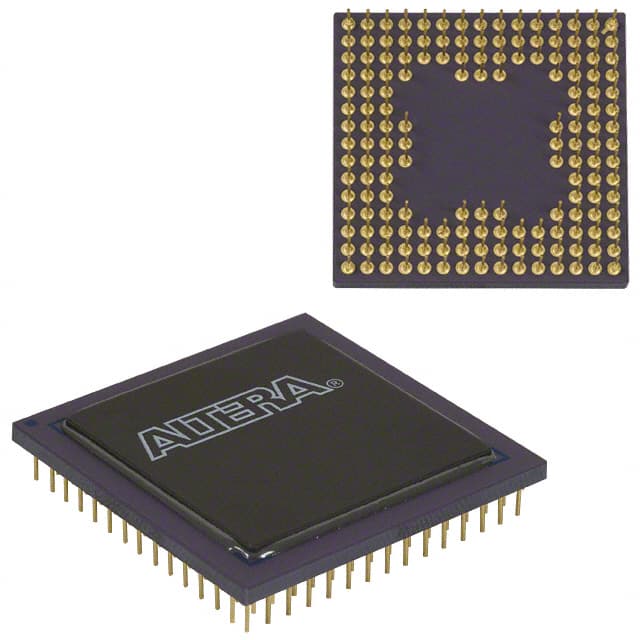

EPM7192EGI160-15IC CPLD 192MC 15NS 160PGA |
3,914 |
|
Datasheet | MAX® 7000 | 160-BPGA | Tray | Obsolete | Not Verified | EE PLD | 15 ns | 4.5V ~ 5.5V | 12 | 192 | 3750 | 124 | -40°C ~ 85°C (TA) | - | - | Through Hole | 160-PGA (39.62x39.62) |
|
|
EPM7192EQC160-15YYIC CPLD 192MC 15NS 160QFP |
1,816 |
|
Datasheet | MAX® 7000 | 160-BQFP | Tray | Obsolete | Not Verified | EE PLD | 15 ns | 4.75V ~ 5.25V | 12 | 192 | 3750 | 124 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 160-PQFP (28x28) |
|
|
EPM7192SQC160-15ABIC CPLD 192MC 15NS 160QFP |
4,337 |
|
Datasheet | MAX® 7000S | 160-BQFP | Tray | Obsolete | Not Verified | In System Programmable | 15 ns | 4.75V ~ 5.25V | 12 | 192 | 3750 | 124 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 160-PQFP (28x28) |
|
|
EPM7256BFC100-10IC CPLD 256MC 10NS 100FBGA |
3,240 |
|
Datasheet | MAX® 7000B | 100-LBGA | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 84 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-FBGA (11x11) |
Frequently Asked Questions
What are CPLDs (Complex Programmable Logic Devices) components used for?
CPLDs (Complex Programmable Logic Devices) components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right CPLDs (Complex Programmable Logic Devices) part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find CPLDs (Complex Programmable Logic Devices) parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
