CPLDs (Complex Programmable Logic Devices)
Review CPLDs (Complex Programmable Logic Devices) Embedded components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EPM1270F256I5NIC CPLD 980MC 6.2NS 256FBGA |
659 |
|
Datasheet | MAX® II | 256-BGA | Tray | Active | Not Verified | In System Programmable | 6.2 ns | 2.5V, 3.3V | 1270 | 980 | - | 212 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 256-FBGA (17x17) |
|
EPM1270M256I5NIC CPLD 980MC 6.2NS 256MBGA |
274 |
|
Datasheet | MAX® II | 256-TFBGA | Tray | Active | Not Verified | In System Programmable | 6.2 ns | 2.5V, 3.3V | 1270 | 980 | - | 212 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 256-MBGA (11x11) |
|
|
EPM1270F256I5IC CPLD 980MC 6.2NS 256FBGA |
254 |
|
Datasheet | MAX® II | 256-BGA | Tray | Active | Not Verified | In System Programmable | 6.2 ns | 2.5V, 3.3V | 1270 | 980 | - | 212 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 256-FBGA (17x17) |
|
|
EPM2210F256I5NIC CPLD 1700MC 7NS 256FBGA |
2,150 |
|
Datasheet | MAX® II | 256-BGA | Tray | Active | Not Verified | In System Programmable | 7 ns | 2.5V, 3.3V | 2210 | 1700 | - | 204 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 256-FBGA (17x17) |
|
EPM1270T144C3NIC CPLD 980MC 6.2NS 144TQFP |
339 |
|
Datasheet | MAX® II | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 6.2 ns | 2.5V, 3.3V | 1270 | 980 | - | 116 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
EPM2210F256I5IC CPLD 1700MC 7NS 256FBGA |
161 |
|
Datasheet | MAX® II | 256-BGA | Tray | Active | Not Verified | In System Programmable | 7 ns | 2.5V, 3.3V | 2210 | 1700 | - | 204 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 256-FBGA (17x17) |
|
EPM2210F324I5NIC CPLD 1700MC 7NS 324FBGA |
1,346 |
|
Datasheet | MAX® II | 324-BGA | Tray | Active | Not Verified | In System Programmable | 7 ns | 2.5V, 3.3V | 2210 | 1700 | - | 272 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 324-FBGA (19x19) |
|
|
EPM2210F256C3NIC CPLD 1700MC 7NS 256FBGA |
391 |
|
Datasheet | MAX® II | 256-BGA | Tray | Active | Not Verified | In System Programmable | 7 ns | 2.5V, 3.3V | 2210 | 1700 | - | 204 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 256-FBGA (17x17) |
|
|
EPM2210F324C3NIC CPLD 1700MC 7NS 324FBGA |
219 |
|
Datasheet | MAX® II | 324-BGA | Tray | Active | Not Verified | In System Programmable | 7 ns | 2.5V, 3.3V | 2210 | 1700 | - | 272 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 324-FBGA (19x19) |
|

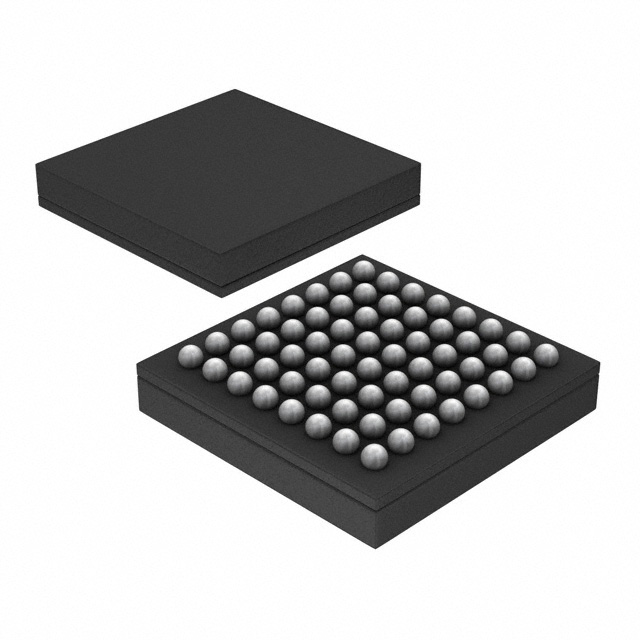

5M40ZM64C5NIC CPLD 32MC 7.5NS 64MBGA |
484 |
|
Datasheet | MAX® V | 64-TFBGA | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.71V ~ 1.89V | 40 | 32 | - | 30 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 64-MBGA (4.5x4.5) |
Frequently Asked Questions
What are CPLDs (Complex Programmable Logic Devices) components used for?
CPLDs (Complex Programmable Logic Devices) components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right CPLDs (Complex Programmable Logic Devices) part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find CPLDs (Complex Programmable Logic Devices) parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
