Electrical, Specialty Fuses
Review Electrical, Specialty Fuses Circuit Protection components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L70QS350.XFUSE CRTRDGE 350A 700VAC/700VDC |
5,244 |
|
Datasheet | POWR-SPEED™ L70QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 350A | 700 VAC | 700 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 2.000" Dia x 5.094" L (50.80mm x 129.39mm) | - | - |
|

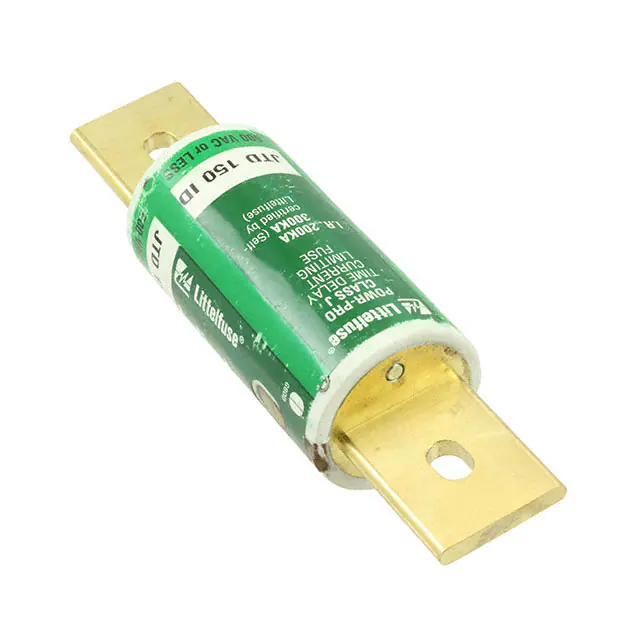

0JTD150.XXIDFUSE CRTRDGE 150A 600VAC/500VDC |
2,315 |
|
Datasheet | POWR-GARD®, POWR-PRO® JTD_ID | Cylindrical, Alarm Indicator, Blade Terminal | Bulk | Active | Requires Holder | Cartridge | 150A | 600 VAC | 500 VDC | Slow Blow | Transformer Protection | Indicating | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.500" Dia x 3.000" L (38.10mm x 76.20mm) | - | - |
|
PSR070UL0200ZFUSE SQUARE 200A 1.3KVAC/1KVDC |
2,378 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 200A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.811" L x 1.693" W x 1.929" H (71.40mm x 43.00mm x 49.00mm) | - | - |
|

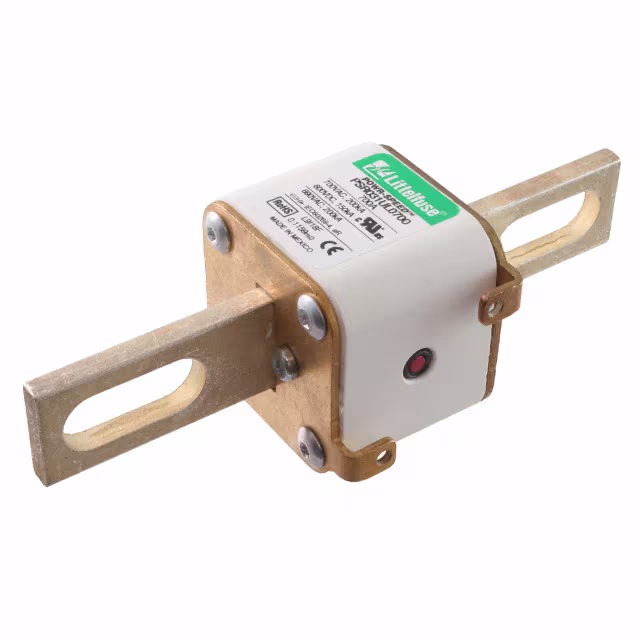

PSR031UL0700ZFUSE SQUARE 700A 700VAC/600VDC |
7,650 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 700A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.898" L x 2.028" W x 2.264" H (48.20mm x 51.50mm x 57.50mm) | - | - |
|

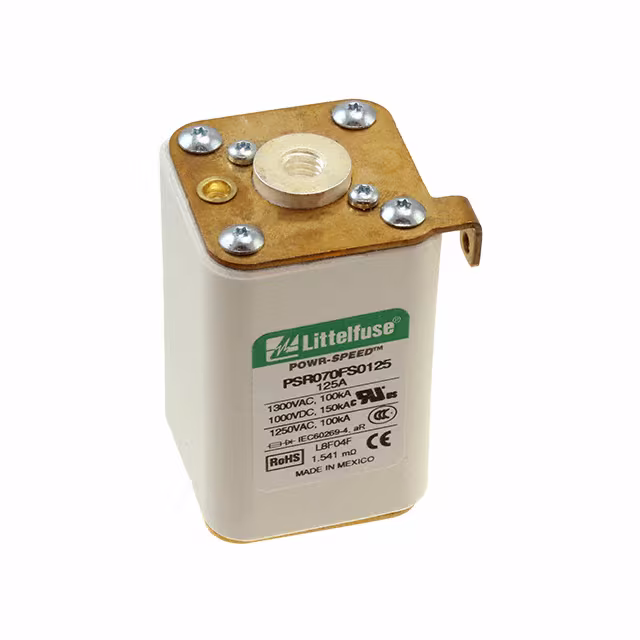

PSR070FS0125ZFUSE SQUARE 125A 1.3KVAC/1KVDC |
4,516 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 125A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.913" L x 1.693" W x 1.929" H (74.00mm x 43.00mm x 49.00mm) | - | - |
|

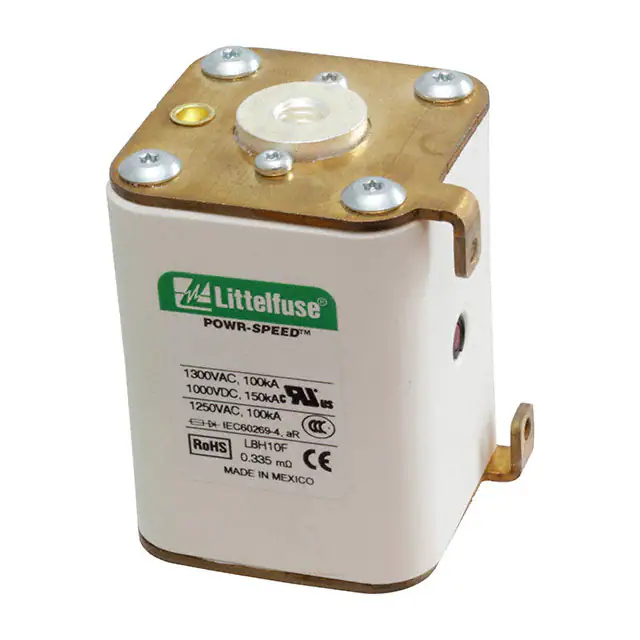

PSR071FS0250ZFUSE SQUARE 250A 1.3KVAC/1KVDC |
5,633 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 250A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.913" L x 2.028" W x 2.264" H (74.00mm x 51.50mm x 57.50mm) | - | - |
|
PSR032US0800XFUSE SQUARE 800A 700VAC/600VDC |
4,616 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 800A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.898" L x 2.362" W x 2.598" H (48.20mm x 60.00mm x 66.00mm) | - | - |
|

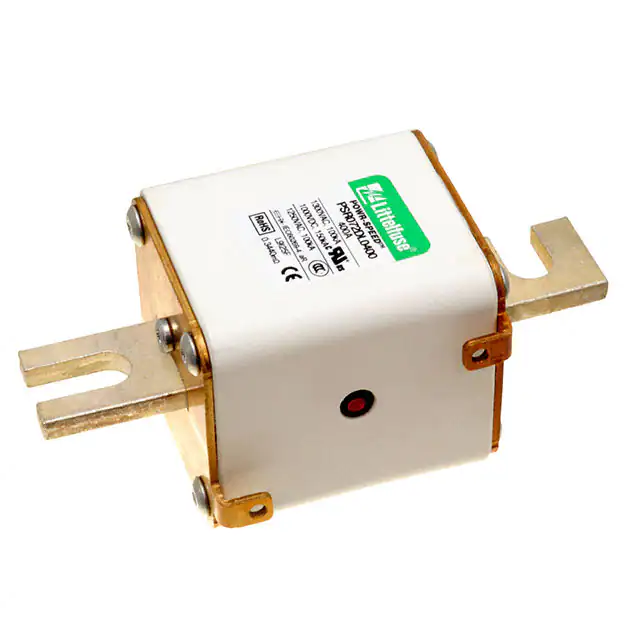

PSR072DL0400XFUSE SQUARE 400A 1.3KVAC/1KVDC |
4,182 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 400A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.843" L x 2.362" W x 2.598" H (72.20mm x 60.00mm x 66.00mm) | - | - |
|
PSR072DL0500XFUSE SQUARE 500A 1.3KVAC/1KVDC |
3,600 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 500A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.843" L x 2.362" W x 2.598" H (72.20mm x 60.00mm x 66.00mm) | - | - |
|

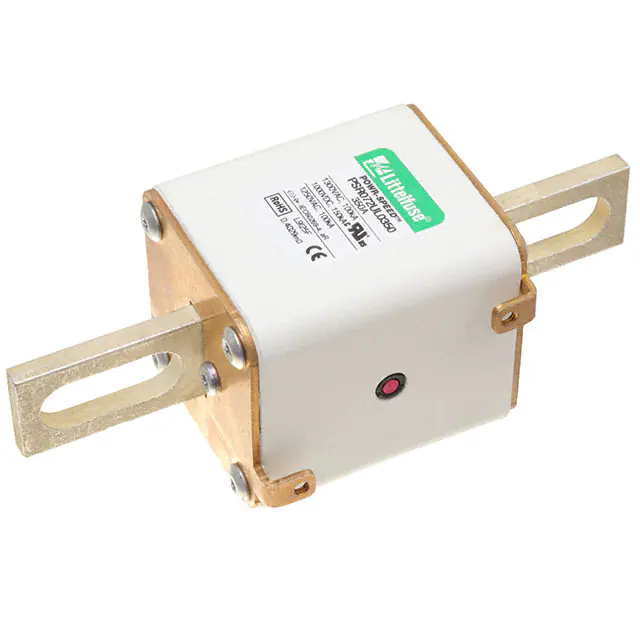

PSR072UL0450XFUSE SQUARE 450A 1.3KVAC/1KVDC |
1,158 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 450A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.843" L x 2.362" W x 2.598" H (72.20mm x 60.00mm x 66.00mm) | - | - |
Frequently Asked Questions
What are Electrical, Specialty Fuses components used for?
Electrical, Specialty Fuses components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Electrical, Specialty Fuses part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Electrical, Specialty Fuses parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
