RF Diodes
Explore RF Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Type | Voltage - Peak Reverse (Max) | Current - Max | Capacitance @ Vr, F | Resistance @ If, F | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MA47223DIODE,PIN,MODULE,SI,ODS144 |
20 |
|
Datasheet | MA47223 | Stud | Bulk | Active | PIN - Single | 500V | - | 20pF @ 50V, 1MHz | 600mOhm @ 100mA, 500MHz | 7.5 W | -65°C ~ 150°C | - | - | - |
|
MA4PK3003DIODE,PIN,BONDED,STRIPLINE,SI |
9 |
|
Datasheet | KILOVOLT™ | Die | Bulk | Active | PIN - Single | 3000V | 25 A | 4pF @ 100V, 1MHz | 250mOhm @ 500mA, 4MHz | 50 W | -65°C ~ 175°C (TA) | - | - | Die |
|
CLA4603-085LFRF DIODE PIN 45V 2W 3QFN |
9,954 |
|
Datasheet | - | 2-VDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 45V | 1.5 A | 0.4pF @ 6V, 1MHz | 2Ohm @ 10mA, 100MHz | 2 W | 175°C (TJ) | - | - | 3-QFN (2x2) |
|
|
CLA4606-085LFRF DIODE PIN 75V 3W 3QFN |
2,425 |
|
Datasheet | - | 2-VDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 75V | 1.5 A | 0.38pF @ 6V, 1MHz | 2Ohm @ 10mA, 100MHz | 3 W | 175°C (TJ) | - | - | 3-QFN (2x2) |
|
|
CLA4605-085LFRF DIODE PIN 60V 1W 3QFN |
4,264 |
|
Datasheet | - | 2-VDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 60V | 1.5 A | 0.45pF @ 6V, 1MHz | 2Ohm @ 10mA, 500MHz | 1 W | 175°C (TJ) | - | - | 3-QFN (2x2) |
|
|
CLA4608-085LFRF DIODE PIN 180V 2W 3QFN |
4,045 |
|
Datasheet | - | 2-VDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 180V | 1.5 A | 0.65pF @ 38V, 1MHz | 1.2Ohm @ 10mA, 500MHz | 2 W | 175°C (TJ) | - | - | 3-QFN (2x2) |
|
|
SMP1330-085LFRF DIODE PIN 50V 3W 3QFN |
5,435 |
|
Datasheet | - | 2-VDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 50V | 200 mA | 1pF @ 0V, 1MHz | 2Ohm @ 10mA, 100MHz | 3 W | 175°C (TJ) | - | - | 3-QFN (2x2) |
|
|
CLA4609-086LFRF DIODE PIN 250V 3QFN |
5,042 |
|
Datasheet | - | 2-VDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 250V | 200 mA | 0.14pF @ 6V, 1MHz | 1.5Ohm @ 10mA, 500MHz | - | 175°C (TJ) | - | - | 3-QFN (2x2) |
|
|
CLA4610-085LFRF DIODE PIN 120V 10W 3QFN |
6,902 |
|
Datasheet | - | 2-VDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 120V | 100 mA | 0.32pF @ 6V, 1MHz | 2.2Ohm @ 10mA, 500MHz | 10 W | 175°C (TJ) | - | - | 3-QFN (2x2) |
|

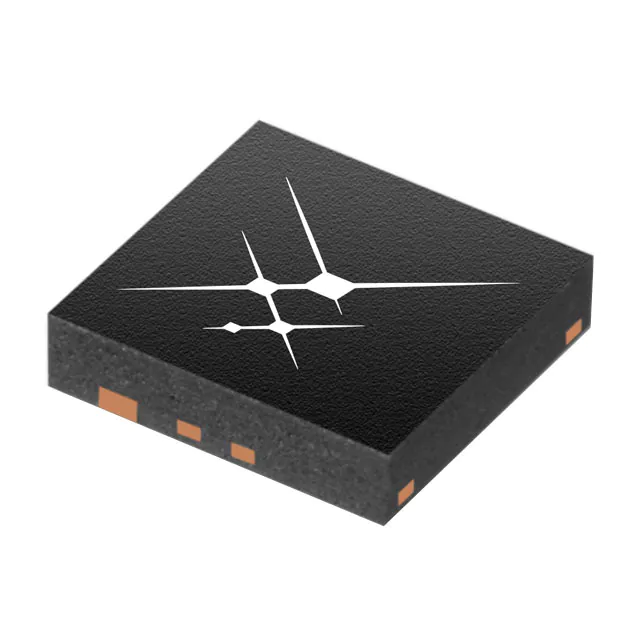

SKY16602-632LFRF DIODE PIN 20V 12W 2MLP |
9,387 |
|
Datasheet | - | 2-UDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 20V | 50 mA | - | - | 12 W | -40°C ~ 85°C (TA) | - | - | 2-MLP (2.3x2.3) |
|
LM200802-M-A-300-TLIMITER,SURFACE MOUNT MODULE,CS3 |
8,227 |
|
Datasheet | - | 2-SMD, No Lead | Tube | Active | PIN - Single | - | - | - | - | - | 175°C (TJ) | - | - | CS300 |
|
MADL-011014-001000LIMITER HIGH POWER,1.0-2.0GHZ,HE |
2,977 |
|
Datasheet | - | 2-SMD, No Lead | Tray | Active | PIN - 1 Pair Series Connection | - | - | - | - | 320 W | 175°C (TJ) | - | - | SMD |
|
MA4E1339B1-287TSCHOTTKY PLASTIC LEAD-FREE |
4,205 |
|
Datasheet | MA4E1339 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Schottky - 1 Pair Series Connection | 20V | 30 mA | 1.2pF @ 0V, 1MHz | - | 250 mW | -55°C ~ 125°C (TJ) | - | - | SOT-23 |
|
DSG9500-000RF DIODE PIN 100V 250MW |
2,095 |
|
Datasheet | - | - | Tray | Active | PIN - Single | 100V | - | 0.025pF @ 50V, 1MHz | 4Ohm @ 50mA, 100MHz | 250 mW | -65°C ~ 150°C (TA) | - | - | - |
|
CLA4606-000DIODE LIMITER SILICON 45-75V |
3,862 |
|
Datasheet | CLA | Die | Tray | Active | PIN - Single | 75V | 200 mA | - | 2Ohm @ 10mA, 1MHz | 650 mW | -65°C ~ 175°C (TJ) | - | - | Die |
|
|
CLA4608-000DIODE LIMITER SILICON 120-180V |
3,022 |
|
Datasheet | CLA | Die | Tray | Active | PIN - Single | 180V | 200 mA | - | 1.2Ohm @ 10mA, 1MHz | 850 mW | -65°C ~ 175°C (TJ) | - | - | Die |
|
|
CLA4610-000RF DIODE PIN 120V 620MW DIE |
9,526 |
|
Datasheet | - | Die | Tray | Active | PIN - Single | 120V | 200 mA | 0.12pF @ 6V, 1MHz | 2.2Ohm @ 10mA, 500MHz | 620 mW | -65°C ~ 175°C (TJ) | - | - | Die |
|
MA4GP907GAAS,FLIPCHIP,PIN |
4,562 |
|
Datasheet | - | Die | Tray | Active | PIN - Single | 50V | - | 0.03pF @ 10V, 1MHz | 7Ohm @ 10mA, 1GHz | 250 mW | 175°C (TJ) | - | - | Chip |
|
|
UMX512SI PPIN HERMETIC MELF |
8,235 |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - |
|
PMBD353,215RF DIODE SCHOTTKY 4V TO236AB |
41 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Schottky - 1 Pair Series Connection | 4V | 30 mA | 1pF @ 0V, 1MHz | - | - | 100°C (TJ) | Automotive | AEC-Q100 | TO-236AB |
Frequently Asked Questions
What are RF Diodes components used for?
RF Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
