Analog to Digital Converters (ADC)
Review Analog to Digital Converters (ADC) Data Acquisition components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Bits | Sampling Rate (Per Second) | Number of Inputs | Input Type | Data Interface | Configuration | Ratio - S/H:ADC | Number of A/D Converters | Architecture | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | Features | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADS7809U/1KG4IC ADC 16BIT SAR 20SOIC |
2,235 |
|
Datasheet | - | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | 16 | 100k | 1 | Single Ended | SPI, DSP | S/H-ADC | 1:1 | 1 | SAR | External, Internal | 5V | 5V | - | -40°C ~ 85°C | 20-SOIC | Surface Mount | - | - |
|

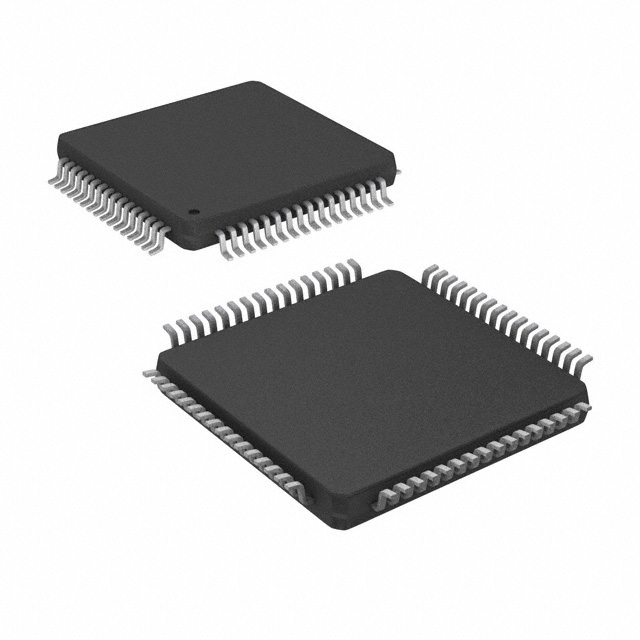

ADC12DL080CIVS/NOPBIC ADC 12BIT PIPELINED 64TQFP |
3,990 |
|
Datasheet | - | 64-TQFP | Tray | Active | 12 | 80M | 2 | Differential | Parallel | S/H-ADC | 1:1 | 2 | Pipelined | External, Internal | 3V ~ 3.6V | 2.4V ~ 3.6V | Simultaneous Sampling | -40°C ~ 85°C | 64-TQFP (10x10) | Surface Mount | - | - |
|
ADS9815RSHREIGHT-CHANNEL, 18-BIT, 1-MSPS/CH |
3,786 |
|
Datasheet | - | 56-VFQFN Exposed Pad | Tape & Reel (TR) | Active | 18 | 1M | 8, 16 | Differential, Single Ended | Serial, SPI | MUX-PGA-ADC | 0:2 | 2 | SAR | External, Internal | 1.75V ~ 1.85V, 4.75V ~ 5.25V | 1.75V ~ 1.85V | Over-Voltage Protection, PGA | -40°C ~ 125°C | 56-VQFN (7x7) | Surface Mount | - | - |
|
ADC12DL065CIVSIC ADC 12BIT PIPELINED 64TQFP |
3,032 |
|
Datasheet | - | 64-TQFP | Tray | Obsolete | 12 | 40M | 2 | Differential | Parallel | S/H-ADC | 1:1 | 2 | Pipelined | External, Internal | 3V ~ 3.6V | 2.4V ~ 3.6V | Simultaneous Sampling | -40°C ~ 85°C | 64-TQFP (10x10) | Surface Mount | - | - |
|
ADS5221PFBRG4IC ADC 12BIT PIPELINED 48TQFP |
4,126 |
|
Datasheet | - | 48-TQFP | Tape & Reel (TR) | Obsolete | 12 | 65M | 1 | Differential, Single Ended | Parallel | S/H-ADC | 1:1 | 1 | Pipelined | External, Internal | 3V ~ 3.6V | 3V ~ 3.6V | - | -40°C ~ 85°C | 48-TQFP (7x7) | Surface Mount | - | - |
|
ADC3542IRSBRSINGLE-CHANNEL, 14-BIT, 25-MSPS, |
1,492 |
|
Datasheet | - | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Active | 14 | 25M | 1 | Differential | Serial, SPI | ADC | 0:1 | 1 | SAR | External, Internal | 1.75V ~ 1.85V | 1.75V ~ 1.85V | Temperature Sensor | -40°C ~ 105°C | 40-WQFN (5x5) | Surface Mount | - | - |
|
ADS774HIDWRIC ADC 12BIT SAR 28SOIC |
4,642 |
|
Datasheet | - | 28-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Not For New Designs | 12 | 125k | 1 | Single Ended | Parallel | S/H-ADC | 1:1 | 1 | SAR | External, Internal | 5V, -16.5V ~ 5.5 | 5V | - | -40°C ~ 85°C | 28-SOIC | Surface Mount | - | - |
|
ADS8413IBRGZRG4IC ADC 16BIT SAR 48VQFN |
3,743 |
|
Datasheet | - | 48-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | 16 | 2M | 1 | Differential | LVDS - Serial | S/H-ADC | 1:1 | 1 | SAR | External, Internal | 5V | 2.7V ~ 5.25V | - | -40°C ~ 85°C | 48-VQFN (7x7) | Surface Mount | - | - |
|
ADS6142IRHBRIC ADC 14BIT PIPELINED 32VQFN |
1,833 |
|
Datasheet | - | 32-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | 14 | 65M | 1 | Differential | LVDS - Parallel, Parallel | S/H-ADC | 1:1 | 1 | Pipelined | External, Internal | 3V ~ 3.6V | 1.65V ~ 3.6V | - | -40°C ~ 85°C | 32-VQFN (5x5) | Surface Mount | - | - |
|
PCM1760PIC ADC 20BIT SIGMA-DELTA 28DIP |
3,669 |
|
Datasheet | - | 28-DIP (0.600", 15.24mm) | Tube | Obsolete | 20 | 48k | 2 | Single Ended | Serial | ADC | 1:1 | 1 | Sigma-Delta | - | ±5V | ±5V | Simultaneous Sampling | 0°C ~ 70°C | 28-PDIP | Through Hole | - | - |
Frequently Asked Questions
What are Analog to Digital Converters (ADC) components used for?
Analog to Digital Converters (ADC) components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Analog to Digital Converters (ADC) part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Analog to Digital Converters (ADC) parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
