Current Sense Transformers
Review Current Sense Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CR8349-1000-NCURR SENSE XFMR 50A T/H |
570 |
|
Datasheet | CR8300 | Bulk | Active | 20Hz ~ 1kHz | Non-Invasive (Solid Core) | 50 A | - | - | - | 1000:1 | 32Ohm | - | Through Hole | 1.024" L x 0.670" W (26.00mm x 17.00mm) | 1.102" (28.00mm) | PC Pin |
|
CR2550-RCURR SENSE XFMR IN-LINE |
186 |
|
Datasheet | CR2550 | Bulk | Active | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | - | - | - | - | - | - | - | Free Hanging (In-Line) | 1.094" L x 0.866" W (27.80mm x 22.00mm) | - | - |
|

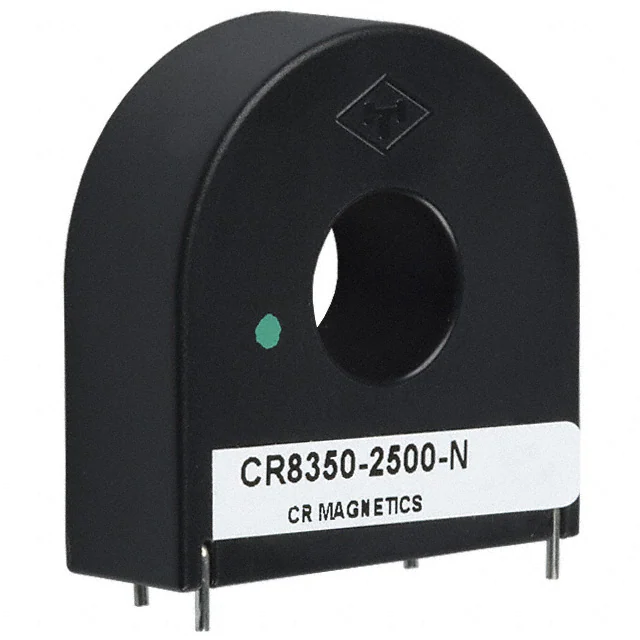

CR8350-2500-NCURR SENSE XFMR 100A T/H |
2,694 |
|
Datasheet | CR8300 | Bulk | Active | 20Hz ~ 1kHz | Non-Invasive (Solid Core) | 100 A | - | - | - | 2500:1 | 57Ohm | - | Through Hole | 1.476" L x 0.551" W (37.50mm x 14.00mm) | 1.535" (39.00mm) | PC Pin |
|

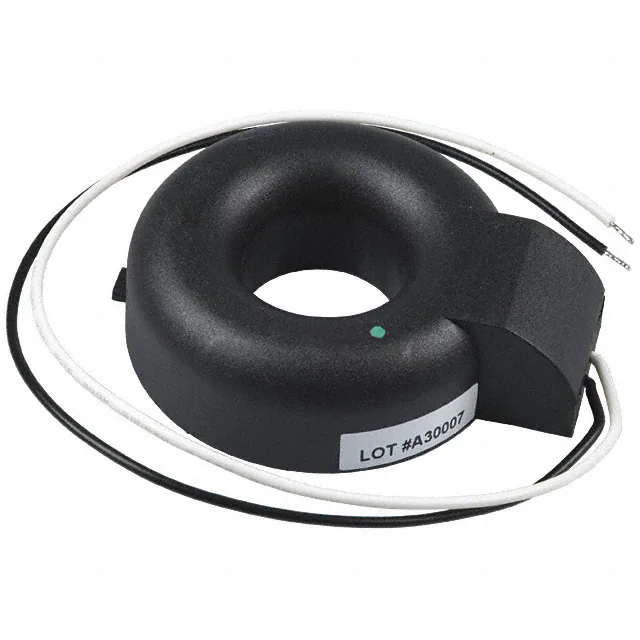

CR8459-2000-NCURR SENSE XFMR 200A IN-LINE |
852 |
|
Datasheet | CR8400 | Bulk | Active | 20Hz ~ 1kHz | Non-Invasive (Solid Core) | 200 A | - | - | - | 2000:1 | 74Ohm | - | Free Hanging (In-Line) | 2.362" L x 1.890" W (60.00mm x 48.00mm) | 0.689" (17.50mm) | Wire Leads |
|
CR8448-2500-NCURR SENSE XFMR 40A IN-LINE |
1,207 |
|
Datasheet | CR8400 | Bulk | Active | 20Hz ~ 1kHz | Non-Invasive (Solid Core) | 40 A | - | - | - | 2500:1 | 134Ohm | - | Free Hanging (In-Line) | 1.160" L x 0.922" W (29.46mm x 23.42mm) | 0.435" (11.05mm) | Wire Leads |
|
MODEL 18-600CURR SENSE XFMR |
242 |
|
Datasheet | PH | Bulk | Active | 50Hz ~ 1kHz | Non-Invasive (Solid Core) | - | - | - | - | - | - | - | - | 1.331" L x 0.520" W (33.80mm x 13.20mm) | 1.488" (37.80mm) | Wire Leads |
|
CR8349-1500-NCURR SENSE XFMR T/H |
167 |
|
Datasheet | CR8300 | Bulk | Active | 20Hz ~ 1kHz | Non-Invasive (Solid Core) | - | - | - | - | - | - | - | Through Hole | 1.024" L x 0.670" W (26.00mm x 17.00mm) | 1.102" (28.00mm) | PC Pin |
|
CR3110-3000CURR SENSE XFMR IN-LINE |
1,868 |
|
Datasheet | CR3100 | Bulk | Active | 20Hz ~ 1kHz | Non-Invasive (Split Core) | - | - | - | - | - | 515mOhm | - | Free Hanging (In-Line) | 1.004" L x 1.043" W (25.50mm x 26.50mm) | 1.575" (40.00mm) | Wire Leads |
|
CR8350-2000CURR SENSE XFMR 200A T/H |
1,711 |
|
Datasheet | CR8300 | Bulk | Active | 20Hz ~ 1kHz | Non-Invasive (Solid Core) | 200 A | - | - | - | 2000:1 | 73Ohm | - | Through Hole | 1.476" L x 0.551" W (37.50mm x 14.00mm) | 1.535" (39.00mm) | PC Pin |
|
MODEL 19CURR SENSE XFMR IN-LINE |
2,226 |
|
Datasheet | PH | Bulk | Active | 50Hz ~ 1kHz | Non-Invasive (Solid Core) | - | - | - | - | - | - | - | Free Hanging (In-Line) | 1.039" L x 0.949" W (26.40mm x 24.10mm) | 0.461" (11.70mm) | Wire Leads |
Frequently Asked Questions
What are Current Sense Transformers components used for?
Current Sense Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Current Sense Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Current Sense Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
