Current Sense Transformers
Review Current Sense Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7492540500CURR SENSE XFMR 1:500 40A SMD |
922 |
|
Datasheet | MID-CST | Tape & Reel (TR) | Active | 1MHz | Invasive | 40 A | 135 mH | 1240Vµs | 1:500 | - | 0.28mOhm Primary, 21.2Ohm Secondary | AEC-Q200 | Surface Mount | 0.570" L x 0.524" W (14.48mm x 13.30mm) | 0.413" (10.50mm) | Gull Wing |
|
|
7492541000CURR SENSE XFMR 1:1000 40A SMD |
861 |
|
Datasheet | MID-CST | Tape & Reel (TR) | Active | 1MHz | Invasive | 40 A | 540 mH | 2480Vµs | 1:1000 | - | 0.28mOhm Primary, 87.64Ohm Secondary | AEC-Q200 | Surface Mount | 0.570" L x 0.524" W (14.48mm x 13.30mm) | 0.413" (10.50mm) | Gull Wing |
|
|
7492540200CURR SENSE XFMR 1:200 40A SMD |
430 |
|
Datasheet | MID-CST | Tape & Reel (TR) | Active | 1MHz | Invasive | 40 A | 22.4 mH | 496Vµs | 1:200 | - | 0.28mOhm | AEC-Q200 | Surface Mount | 0.570" L x 0.524" W (14.48mm x 13.30mm) | 0.413" (10.50mm) | Gull Wing |
|
|
7492540020CURR SENSE XFMR 1:20 40A SMD |
236 |
|
Datasheet | MID-CST | Tape & Reel (TR) | Active | 1MHz | Invasive | 40 A | 224 µH | 49Vµs | 1:20 | - | 0.28mOhm Primary, 33mOhm Secondary | AEC-Q200 | Surface Mount | 0.570" L x 0.524" W (14.48mm x 13.30mm) | 0.413" (10.50mm) | Gull Wing |
|
749251060CURR SENSE XFMR 1:60 10A SMD |
748 |
|

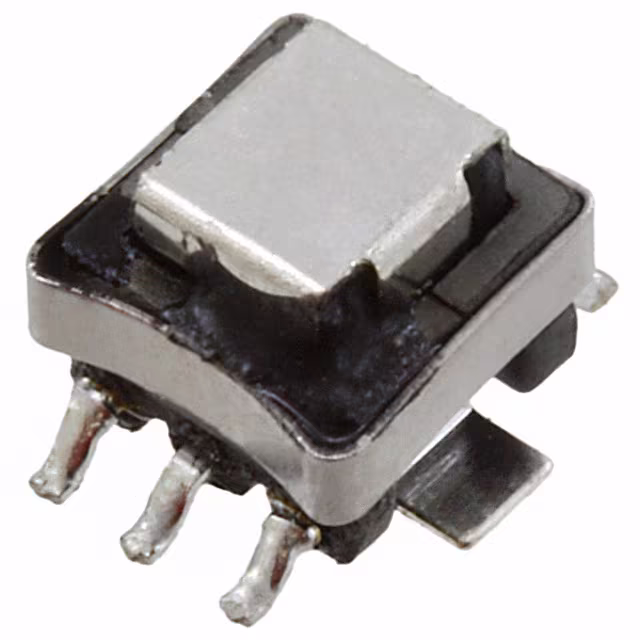

Datasheet | WE-CST | Tape & Reel (TR) | Active | - | Invasive | - | 720 µH | 30VµS | 1:60 | - | 6mOhm Primary, 1.75Ohm Secondary | - | Surface Mount | 0.303" L x 0.272" W (7.70mm x 6.90mm) | 0.210" (5.33mm) | Gull Wing |
|
749251030CURR SENSE XFMR 1:30 10A SMD |
733 |
|
Datasheet | WE-CST | Tape & Reel (TR) | Active | - | Invasive | - | 180 µH | 15VµS | 1:30 | - | 6mOhm Primary, 480mOhm Secondary | - | Surface Mount | 0.303" L x 0.272" W (7.70mm x 6.90mm) | 0.210" (5.33mm) | Gull Wing |
|
749251040CURR SENSE XFMR 1:40 10A SMD |
727 |
|
Datasheet | WE-CST | Tape & Reel (TR) | Active | - | Invasive | - | 320 µH | 20VµS | 1:40 | - | 6mOhm Primary, 900mOhm Secondary | - | Surface Mount | 0.303" L x 0.272" W (7.70mm x 6.90mm) | 0.210" (5.33mm) | Gull Wing |
|
|
7492540070CURR SENSE XFMR 1:70 40A SMD |
180 |
|
Datasheet | MID-CST | Tape & Reel (TR) | Active | 1MHz | Invasive | 40 A | 2.74 mH | 173VµS | 1:70 | - | 0.28mOhm Primary, 367mOhm Secondary | AEC-Q200 | Surface Mount | 0.570" L x 0.524" W (14.48mm x 13.30mm) | 0.413" (10.50mm) | Gull Wing |
|
|
7492540030CURR SENSE XFMR 1:30 40A SMD |
419 |
|
Datasheet | MID-CST | Tape & Reel (TR) | Active | 1MHz | Invasive | 40 A | 504 µH | 74Vµs | 1:30 | - | 0.28mOhm Primary, 93mOhm Secondary | AEC-Q200 | Surface Mount | 0.570" L x 0.524" W (14.48mm x 13.30mm) | 0.413" (10.50mm) | Gull Wing |
|
|
7492540150CURR SENSE XFMR 1:150 40A SMD |
3,385 |
|
Datasheet | MID-CST | Tape & Reel (TR) | Active | 1MHz | Invasive | 40 A | 12.6 mH | 372Vµs | 1:150 | - | 0.28mOhm Primary, 1.9Ohm Secondary | AEC-Q200 | Surface Mount | 0.570" L x 0.524" W (14.48mm x 13.30mm) | 0.413" (10.50mm) | Gull Wing |
