Crystals
Explore Crystals parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECS-200-20-30B-TRCRYSTAL 20.0000MHZ 20PF SMD |
2,838 |
|
Datasheet | ECX-53B | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 20 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.033" (0.85mm) |
-1.10mm.jpg "603-25-173JA4I8")
|
603-25-173JA4I8CRYSTAL 25.0000MHZ 12PF SMD |
7,869 |
|
Datasheet | - | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | MHz Crystal | 25 MHz | ±20ppm | ±20ppm | 12pF | 50 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.130" L x 0.102" W (3.30mm x 2.60mm) | 0.043" (1.10mm) |
|
VMK4-9005-32K7680000VMK4-9005-32K7680000 |
4,830 |
|
Datasheet | VMK4 | 2-SMD, No Lead | Strip | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | - | 90 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.024" (0.60mm) |
|
|
FC-13E 32.7680KC-AC0CRYSTAL 32.7680KHZ 9PF SMD |
6,543 |
|
Datasheet | FC-13E | 2-SMD, No Lead | Tape & Reel (TR) | Not For New Designs | kHz Crystal (Tuning Fork) | 32.768 kHz | - | - | 9pF | 75 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | 2-SMD (3.2x1.5) | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.019" (0.48mm) |
|
ABM13W-32.0000MHZ-5-B1G-T5CRYSTAL 32.0000MHZ 5PF SMD |
8,227 |
|
Datasheet | ABM13W | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 32 MHz | ±15ppm | ±10ppm | 5pF | 100 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.047" L x 0.039" W (1.20mm x 1.00mm) | 0.013" (0.33mm) |
|
ECS-736.69-S-1XCRYSTAL 73.66979MHZ SERIES TH |
3,507 |
|
Datasheet | HC-49U | HC-49/U | Bulk | Active | MHz Crystal | 73.66979 MHz | ±50ppm | ±30ppm | Series | 40 Ohms | 3rd Overtone | -10°C ~ 70°C | - | Through Hole | - | 0.447" L x 0.183" W (11.35mm x 4.65mm) | 0.530" (13.46mm) |
|
CM130-32.768KDZBTRCRYSTAL 32.7680KHZ 6PF SMD |
6,853 |
|
Datasheet | CM130 | 4-SMD, Flat Lead, 3 Leads | Tape & Reel (TR) | Obsolete | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 6pF | 65 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.264" L x 0.055" W (6.70mm x 1.40mm) | 0.055" (1.40mm) |
|
NX2016AB-36MHZ ST3CRYSTAL 36.0000MHZ 8PF SMD |
5,743 |
|
Datasheet | NX2016AB | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | MHz Crystal | 36 MHz | ±20ppm | ±20ppm | 8pF | 60 Ohms | Fundamental | -30°C ~ 75°C | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.020" (0.50mm) |
|
|
NX2016AB-38.4MHZ SW1CRYSTAL 38.4000MHZ 7PF SMD |
6,159 |
|
Datasheet | NX2016AB | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | MHz Crystal | 38.4 MHz | ±10ppm | ±10ppm | 7pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.020" (0.50mm) |
|
|
NX2016AB-40MHZ SW2CRYSTAL 40.0000MHZ 7PF SMD |
3,567 |
|
Datasheet | NX2016AB | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | MHz Crystal | 40 MHz | ±10ppm | ±10ppm | 7pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.020" (0.50mm) |
|
CM51932768EZFTCRYSTAL 32.7680KHZ 12.5PF SMD |
5,359 |
|
Datasheet | CM519 | 2-SMD, No Lead | Tape & Reel (TR) | Obsolete | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±10ppm | 12.5pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.190" L x 0.070" W (4.90mm x 1.80mm) | 0.039" (1.00mm) |
|
CS325-24.500MABJ-UTCRYSTAL 24.5000MHZ 18PF SMD |
6,095 |
|
Datasheet | CS325 | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | MHz Crystal | 24.5 MHz | ±50ppm | ±30ppm | 18pF | 80 Ohms | Fundamental | -10°C ~ 60°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.024" (0.60mm) |
|
|
CS325-24.975MABJ-UTCRYSTAL 24.9750MHZ 18PF SMD |
4,397 |
|
Datasheet | CS325 | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | MHz Crystal | 24.975 MHz | ±50ppm | ±30ppm | 18pF | 80 Ohms | Fundamental | -10°C ~ 60°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.024" (0.60mm) |
|

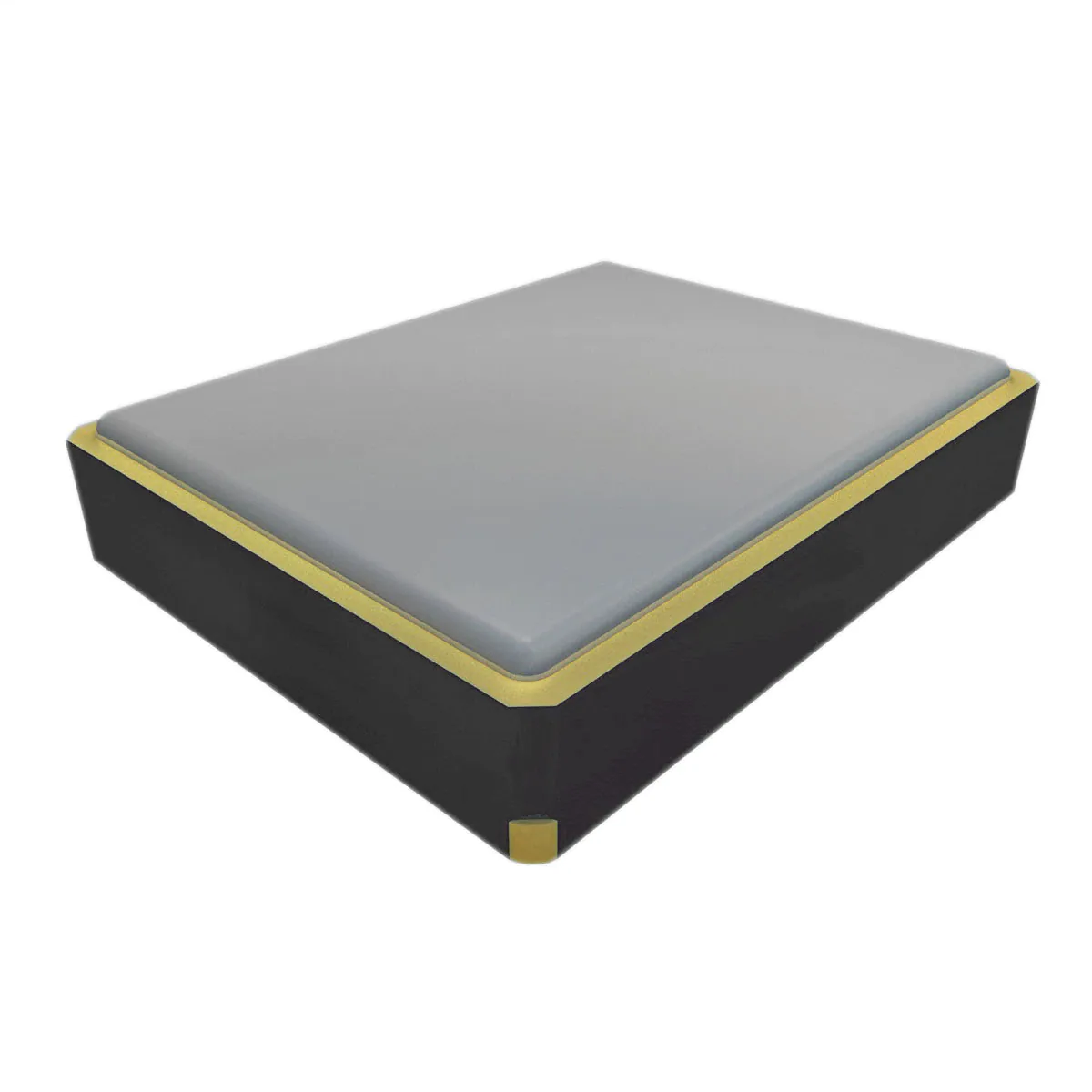

FK161EIHM0.032768-T5CRYSTAL 32.7680KHZ 12.5PF SMD |
9,700 |
|
Datasheet | FK161 | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 90 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.020" (0.50mm) |
|
FK13LEIHM0.032768-T3CRYSTAL 32.768KHZ 12.5PF SMT |
9,308 |
|
Datasheet | * | - | Cut Tape (CT) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FK13LEIBM0.032768-T3CRYSTAL 32.768KHZ 6PF SMT |
7,442 |
|
Datasheet | * | - | Cut Tape (CT) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TF162J32K7680RCRYSTAL 32.7680KHZ 9PF SMD |
7,287 |
|
Datasheet | TF16 | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 9pF | 90 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.020" (0.50mm) |
|
|
TFA162JI327KRCRYSTAL 32.7680KHZ 9PF SMD |
4,108 |
|
Datasheet | TFA16 | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 9pF | 90 kOhms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.020" (0.50mm) |
|
016867CRYSTAL 4.754687MHZ SMD |
4,681 |
|
Datasheet | - | - | Tape & Reel (TR) | Active | MHz Crystal | 4.754687 MHz | - | - | - | - | Fundamental | - | - | Surface Mount | - | - | - |
|
|
TF161J32K7680RSurface Mount Tuning Fork Crysta |
9,082 |
|
Datasheet | TF16 | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±10ppm | 9pF | 90 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.063" L x 0.039" W (1.60mm x 1.00mm) |
Frequently Asked Questions
What are Crystals components used for?
Crystals components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Crystals part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Crystals parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
