Crystals
Explore Crystals parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
407F35E016M0000CRYSTAL 16.0000MHZ 20PF SMD |
7,602 |
|
Datasheet | 407 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.051" (1.30mm) |
|
|
407F37D008M0000CRYSTAL 8.0000MHZ 18PF SMD |
8,789 |
|
Datasheet | 407 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 8 MHz | ±30ppm | ±30ppm | 18pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.051" (1.30mm) |
|
CX2520DB24000C0FLJA1CRYSTAL 24.0000MHZ 7PF SMD |
3,140 |
|
Datasheet | CX2520DB, Kyocera | 4-SMD, No Lead | Tape & Reel (TR) | Discontinued at Digi-Key | MHz Crystal | 24 MHz | ±15ppm | ±10ppm | 7pF | 80 Ohms | Fundamental | -30°C ~ 85°C | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.022" (0.55mm) |
|
FC7ASBBMD16.0-T2CRYSTAL 16MHZ 20PF SMT |
3,333 |
|
Datasheet | * | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FC7ASBBMD25.0-T2CRYSTAL 25MHZ 20PF SMT |
5,247 |
|
Datasheet | * | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FC7ASBBMD24.576-T2CRYSTAL 24.576MHZ 20PF SMT |
6,236 |
|
Datasheet | * | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FC7ASBBMD9.8304-T2CRYSTAL 9.8304MHZ 20PF SMT |
5,440 |
|
Datasheet | * | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FC-255 32.7680KA-A3CRYSTAL 32.7680KHZ 12.5PF SMD |
6,491 |
|
Datasheet | FC-255 | 2-SMD, No Lead | Tape & Reel (TR) | Obsolete | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 65 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | 2-SMD (4.9x1.8) | 0.193" L x 0.071" W (4.90mm x 1.80mm) | 0.035" (0.90mm) |
|
IL3X-HX5F7-32.768KHZCRYSTAL 32.7680KHZ 7PF SMD |
6,135 |
|
Datasheet | IL3X | 2-SMD, No Lead | Tape & Reel (TR) | Obsolete | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 7pF | 65 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|
|
E8WSDC09-32.768K TRCRYSTAL, SMD WATCH CRYSTAL, 3.2X |
9,202 |
|
Datasheet | E8WS | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 9pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|
|
IL3X2-HX5F6-32.768 KHZCRYSTAL SMD 32.768KHZ |
9,605 |
|
Datasheet | IL3X2 | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 6pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
.jpg "ABM8-16.800MHZ-10-1-U-T")
|
ABM8-16.800MHZ-10-1-U-TCRYSTAL 16.8000MHZ 10PF SMD |
2,419 |
|
Datasheet | ABM8 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16.8 MHz | ±10ppm | ±10ppm | 10pF | 70 Ohms | Fundamental | -10°C ~ 60°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
ABM8-24.5535MHZ-10-1-U-TCRYSTAL 24.5535MHZ 10PF SMD |
5,283 |
|
Datasheet | ABM8 | 4-SMD, No Lead | Cut Tape (CT) | Active | MHz Crystal | 24.5535 MHz | ±10ppm | ±10ppm | 10pF | 50 Ohms | Fundamental | -10°C ~ 60°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
FC7BQCCMC10.0-T1CRYSTAL 10.0000MHZ 20PF SMD |
9,158 |
|
Datasheet | C7BQ | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | MHz Crystal | 10 MHz | ±30ppm | ±30ppm | 20pF | 80 Ohms | Fundamental | 0°C ~ 70°C | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.051" (1.30mm) |
|
|
FC7BQCCMC11.592-T1CRYSTAL 11.0592MHZ 20PF SMD |
3,943 |
|
Datasheet | C7BQ | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | MHz Crystal | 11.0592 MHz | ±30ppm | ±30ppm | 20pF | 80 Ohms | Fundamental | 0°C ~ 70°C | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.051" (1.30mm) |
|
|
CS00469-26MCRYSTAL 26.0000MHZ 10PF SMD |
6,240 |
|
Datasheet | NX3225SA | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 26 MHz | ±11ppm | ±10ppm | 10pF | 50 Ohms | Fundamental | -20°C ~ 75°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.028" (0.70mm) |
|
CM315-32.768KDZF-UTCRYSTAL 32.7680KHZ 12.5PF SMD |
9,370 |
|
Datasheet | CM315 | 2-SMD, No Lead | Tape & Reel (TR) | Obsolete | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|

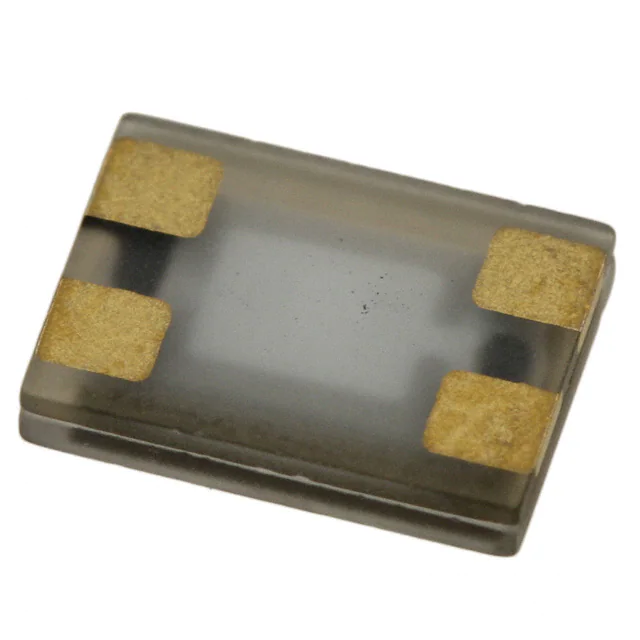

FC7BQCCMC6.0-T1CRYSTAL 6.0000MHZ 20PF SMD |
2,130 |
|
Datasheet | C7BQ | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | MHz Crystal | 6 MHz | ±30ppm | ±30ppm | 20pF | 80 Ohms | Fundamental | 0°C ~ 70°C | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.051" (1.30mm) |
|
9HT9-32.768KBZF-TCRYSTAL 32.7680KHZ 12.5PF SMD |
4,540 |
|
Datasheet | 9HT9 | 2-SMD, No Lead | Tape & Reel (TR) | Obsolete | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±50ppm | 12.5pF | 65 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.161" L x 0.059" W (4.10mm x 1.50mm) | 0.033" (0.85mm) |
|
ECS-196.6-18-33Q-DSCRYSTAL 19.6608MHZ 18PF SMD |
6,310 |
|
Datasheet | ECX-33Q | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 19.6608 MHz | ±100ppm | ±30ppm | 18pF | 80 Ohms | Fundamental | -40°C ~ 125°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
Frequently Asked Questions
What are Crystals components used for?
Crystals components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Crystals part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Crystals parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
