Crystals
Explore Crystals parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QT1M-32.768KDZC-T6.9X1.4 - 32.768KHZ QUARTZ XTAL |
100 |
|
Datasheet | QT1M | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 65 kOhms | - | -40°C ~ 85°C | - | Surface Mount | - | 0.272" L x 0.055" W (6.90mm x 1.40mm) | 0.055" (1.40mm) |
.jpg "XL2ED8K5LI-111YXC-24M")
|
XL2ED8K5LI-111YXC-24MYSX321SL 24MHZ 9PF 10PPM XL2ED8K |
100 |
|
Datasheet | YSX321SL | 4-SMD, No Lead | Cut Tape (CT) | Active | MHz Crystal | 24 MHz | ±10ppm | - | 9pF | 40 Ohms | Fundamental | - | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
XL2ED8K5QI-111YXC-26MYSX321SL 26MHZ 16PF 10PPM XL2ED8 |
100 |
|
Datasheet | YSX321SL | 4-SMD, No Lead | Cut Tape (CT) | Active | MHz Crystal | 26 MHz | ±10ppm | - | 16pF | 40 Ohms | Fundamental | - | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
XL2ED8K5KI-111YXC-50MYSX321SL 50MHZ 8PF 10PPM XL2ED8K |
100 |
|
Datasheet | YSX321SL | 4-SMD, No Lead | Cut Tape (CT) | Active | MHz Crystal | 50 MHz | ±10ppm | - | 8pF | 40 Ohms | Fundamental | - | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
XL2ED8K5KI-111YXC-25MYSX321SL 25MHZ 8PF 10PPM XL2ED8K |
1,006 |
|
Datasheet | YSX321SL | 4-SMD, No Lead | Cut Tape (CT) | Active | MHz Crystal | 25 MHz | ±10ppm | - | 8pF | 40 Ohms | Fundamental | - | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
XL2ED8K5SI-111YXC-27MYSX321SL 27MHZ 20PF 10PPM XL2ED8 |
3,889 |
|
Datasheet | YSX321SL | 4-SMD, No Lead | Cut Tape (CT) | Active | MHz Crystal | 27 MHz | ±10ppm | - | 20pF | 40 Ohms | Fundamental | - | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
XL2ED8K5OI-111YXC-50MYSX321SL 50MHZ 12PF 10PPM XL2ED8 |
4,007 |
|
Datasheet | YSX321SL | 4-SMD, No Lead | Cut Tape (CT) | Active | MHz Crystal | 50 MHz | ±10ppm | - | 12pF | 40 Ohms | Fundamental | - | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
XL2ED8K5OI-111YXC-25MYSX321SL 25MHZ 12PF 10PPM XL2ED8 |
2,121 |
|
Datasheet | YSX321SL | 4-SMD, No Lead | Cut Tape (CT) | Active | MHz Crystal | 25 MHz | ±10ppm | - | 12pF | 40 Ohms | Fundamental | - | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
XL2ED8K5RI-111YXC-16MYSX321SL 16MHZ 18PF 10PPM XL2ED8 |
3,562 |
|
Datasheet | YSX321SL | 4-SMD, No Lead | Cut Tape (CT) | Active | MHz Crystal | 16 MHz | ±10ppm | - | 18pF | 80 Ohms | Fundamental | - | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
XL2ED8K5OI-111YXC-20MYSX321SL 20MHZ 12PF 10PPM XL2ED8 |
1,303 |
|
Datasheet | YSX321SL | 4-SMD, No Lead | Cut Tape (CT) | Active | MHz Crystal | 20 MHz | ±10ppm | - | 12pF | 60 Ohms | Fundamental | - | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
XL2ED8K5LI-111YXC-25MYSX321SL 25MHZ 9PF 10PPM XL2ED8K |
4,721 |
|
Datasheet | YSX321SL | 4-SMD, No Lead | Cut Tape (CT) | Active | MHz Crystal | 25 MHz | ±10ppm | - | 9pF | 40 Ohms | Fundamental | - | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
QT216G-24.000MDDV-T2.0X1.6 GLASS SEAL MHZ QUARTZ XT |
4,565 |
|
Datasheet | QT216G | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 24 MHz | ±20ppm | ±20ppm | 8pF | 200 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.081" L x 0.065" W (2.05mm x 1.65mm) | 0.024" (0.60mm) |
|
9HT7-32.768KAZF-TCRYSTAL 32.7680KHZ 12.5PF SMD |
8,646 |
|
Datasheet | 9HT7 | 4-SMD, Flat Leads | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±30ppm | 12.5pF | 65 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.264" L x 0.055" W (6.70mm x 1.40mm) | 0.055" (1.40mm) |
|
QT1M-32.768KAZF-T6.9X1.4 - 32.768KHZ QUARTZ XTAL |
3,956 |
|
Datasheet | QT1M | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±30ppm | 12.5pF | 65 kOhms | - | -40°C ~ 85°C | - | Surface Mount | - | 0.272" L x 0.055" W (6.90mm x 1.40mm) | 0.055" (1.40mm) |
|
|
QT216G-24.000MEEC-T2.0X1.6 GLASS SEAL MHZ QUARTZ XT |
4,393 |
|
Datasheet | QT216G | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 24 MHz | ±10ppm | ±10ppm | 9pF | 200 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.081" L x 0.065" W (2.05mm x 1.65mm) | 0.024" (0.60mm) |
|
9C-28.63636MBBK-TCRYSTAL 28.63636MHZ 20PF SMD |
2,299 |
|
Datasheet | 9C | HC-49S | Tape & Reel (TR) | Obsolete | MHz Crystal | 28.63636 MHz | ±50ppm | ±50ppm | 20pF | 30 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.449" L x 0.189" W (11.40mm x 4.80mm) | 0.161" (4.10mm) |
|
7R-24.000MEEC-TCRYSTAL 24.0000MHZ 9PF SMD |
9,227 |
|
Datasheet | 7R | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 24 MHz | - | - | 9pF | 150 Ohms | Fundamental | - | - | Surface Mount | - | 0.081" L x 0.065" W (2.05mm x 1.65mm) | 0.024" (0.60mm) |
|

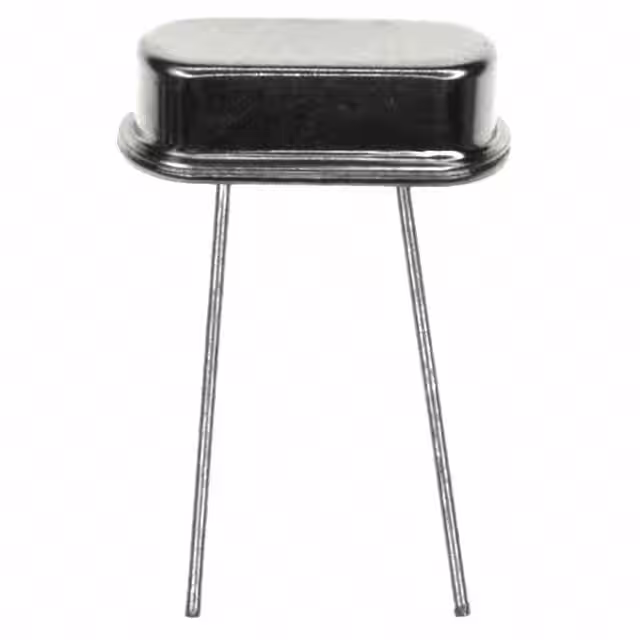

FC4STCBMF24.576CRYSTAL 24.5760MHZ 20PF TH |
2,530 |
|
Datasheet | HC49SLF | HC-49/US | Bulk | Active | MHz Crystal | 24.576 MHz | ±50ppm | ±30ppm | 20pF | 30 Ohms | Fundamental | -20°C ~ 70°C | - | Through Hole | - | 0.447" L x 0.183" W (11.35mm x 4.65mm) | 0.142" (3.60mm) |
|
ABM11-38.400MHZ-B7G-TCRYSTAL 38.4000MHZ 10PF SMD |
2,200 |
|
Datasheet | ABM11 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 38.4 MHz | ±15ppm | ±15ppm | 10pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.023" (0.59mm) |
|
|
ABM11-36.000MHZ-D2X-T3CRYSTAL 36.0000MHZ 10PF SMD |
5,316 |
|
Datasheet | ABM11 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 36 MHz | ±20ppm | ±20ppm | 10pF | 80 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.023" (0.59mm) |
Frequently Asked Questions
What are Crystals components used for?
Crystals components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Crystals part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Crystals parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
