Crystals
Explore Crystals parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS040BCRYSTAL 4.0000MHZ 18PF TH |
445 |
|
Datasheet | ATS | HC-49/US | Bulk | Active | MHz Crystal | 4 MHz | ±50ppm | ±30ppm | 18pF | 120 Ohms | Fundamental | -20°C ~ 70°C | - | Through Hole | - | 0.427" L x 0.177" W (10.85mm x 4.50mm) | 0.145" (3.68mm) |
|
830015055WE-XTAL QUARTZ CRYSTAL 16.0 MHZ; |
433 |
|
Datasheet | HC49/4HSMX | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms | Fundamental | -10°C ~ 60°C | - | Surface Mount | - | 0.449" L x 0.193" W (11.40mm x 4.90mm) | 0.169" (4.30mm) |
|
|
830011301WE-XTAL QUARTZ CRYSTAL 8.0 MHZ; |
362 |
|
Datasheet | HC49/4HSMX | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 8 MHz | ±50ppm | ±30ppm | 30pF | 40 Ohms | Fundamental | -10°C ~ 60°C | - | Surface Mount | - | 0.449" L x 0.193" W (11.40mm x 4.90mm) | 0.169" (4.30mm) |
|
830020423CRYSTAL 8.0000MHZ 18PF SMD |
112 |
|
Datasheet | WE-XTAL | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 8 MHz | ±50ppm | ±30ppm | 18pF | 40 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.449" L x 0.193" W (11.40mm x 4.90mm) | 0.169" (4.30mm) |
|
ABM11-25.000MHZ-18-B2Y-TCRYSTAL 25.0000MHZ 18PF SMD |
1,827 |
|
Datasheet | ABM11 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±30ppm | ±20ppm | 18pF | 100 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.023" (0.59mm) |
|
HC49US-FF3F18-11.0592MHZCRYSTAL 11.0592MHZ 18PF TH |
955 |
|
Datasheet | HC49US | HC-49/US | Bulk | Active | MHz Crystal | 11.0592 MHz | ±30ppm | ±30ppm | 18pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Through Hole | - | 0.437" L x 0.185" W (11.10mm x 4.70mm) | 0.138" (3.50mm) |
|
ABLS-25.000MHZ-8-D4YF-TCRYSTAL 25.0000MHZ 8PF SMD |
893 |
|
Datasheet | ABLS | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±30ppm | ±30ppm | 8pF | 40 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.449" L x 0.185" W (11.40mm x 4.70mm) | 0.165" (4.20mm) |
|
|
HC49US-FF3F18-20.000MHZCRYSTAL 20.0000MHZ 18PF TH |
793 |
|
Datasheet | HC49US | HC-49/US | Bulk | Active | MHz Crystal | 20 MHz | ±30ppm | ±30ppm | 18pF | 30 Ohms | Fundamental | -20°C ~ 70°C | - | Through Hole | - | 0.437" L x 0.185" W (11.10mm x 4.70mm) | 0.138" (3.50mm) |
|
HC49US-FF3F18-25.000 MHZCRYSTAL 25.0000MHZ 18PF TH |
786 |
|
Datasheet | HC49US | HC-49/US | Bulk | Active | MHz Crystal | 25 MHz | ±30ppm | ±30ppm | 18pF | 30 Ohms | Fundamental | -20°C ~ 70°C | - | Through Hole | - | 0.437" L x 0.185" W (11.10mm x 4.70mm) | 0.138" (3.50mm) |
|
E1SJA18-10.240M TRCRYSTAL 10.2400MHZ 18PF SMD |
650 |
|
Datasheet | E1S | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 10.24 MHz | ±30ppm | ±15ppm | 18pF | 70 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.524" L x 0.191" W (13.30mm x 4.85mm) | 0.126" (3.20mm) |
|
|
HC49US-FF3F18-24.000MHZCRYSTAL 24.0000MHZ 18PF TH |
531 |
|
Datasheet | HC49US | HC-49/US | Bulk | Active | MHz Crystal | 24 MHz | ±30ppm | ±30ppm | 18pF | 30 Ohms | Fundamental | -20°C ~ 70°C | - | Through Hole | - | 0.437" L x 0.185" W (11.10mm x 4.70mm) | 0.138" (3.50mm) |
|
|
HC49US-FF3F18-14.7456MHZCRYSTAL 14.7456MHZ 18PF TH |
438 |
|
Datasheet | HC49US | HC-49/US | Bulk | Active | MHz Crystal | 14.7456 MHz | ±30ppm | ±30ppm | 18pF | 40 Ohms | Fundamental | -20°C ~ 70°C | - | Through Hole | - | 0.437" L x 0.185" W (11.10mm x 4.70mm) | 0.138" (3.50mm) |
|
FC4STCBAF12.0CRYSTAL 12.0000MHZ SERIES TH |
400 |
|
Datasheet | HC49SLF | HC-49/US | Bulk | Active | MHz Crystal | 12 MHz | ±50ppm | ±30ppm | Series | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Through Hole | - | 0.447" L x 0.183" W (11.35mm x 4.65mm) | 0.142" (3.60mm) |
|

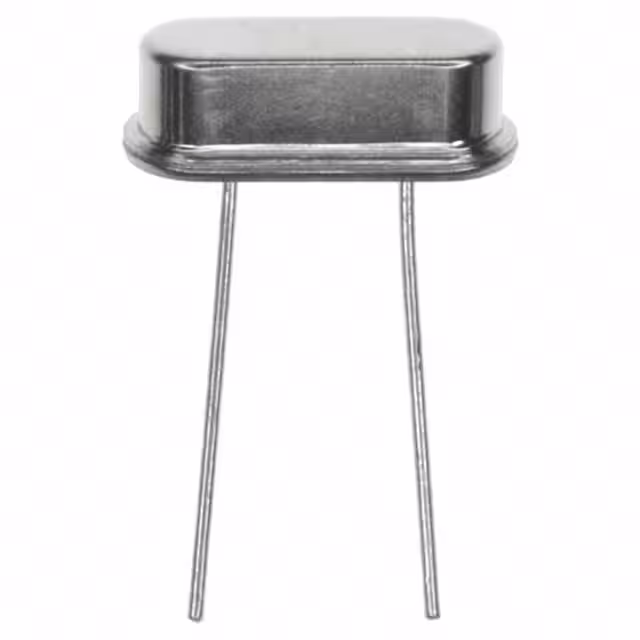

FC4STCBMF22.1184CRYSTAL 22.1184MHZ 20PF TH |
230 |
|
Datasheet | HC49SLF | HC-49/US | Bulk | Active | MHz Crystal | 22.1184 MHz | ±50ppm | ±30ppm | 20pF | 30 Ohms | Fundamental | -20°C ~ 70°C | - | Through Hole | - | 0.447" L x 0.183" W (11.35mm x 4.65mm) | 0.142" (3.60mm) |
|

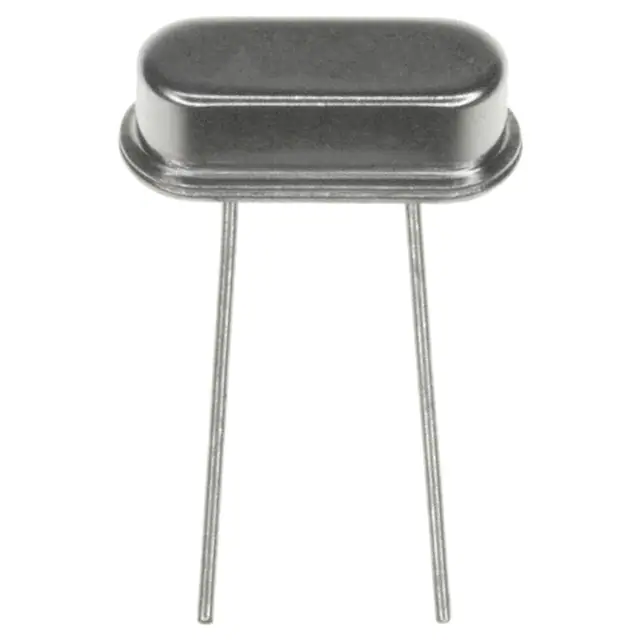

FC4STCBMF24.0CRYSTAL 24.0000MHZ 20PF TH |
598 |
|
Datasheet | HC49SLF | HC-49/US | Bulk | Active | MHz Crystal | 24 MHz | ±50ppm | ±30ppm | 20pF | 30 Ohms | Fundamental | -20°C ~ 70°C | - | Through Hole | - | 0.447" L x 0.183" W (11.35mm x 4.65mm) | 0.142" (3.60mm) |
|
|
LFXTAL050510CRYSTAL 8.0000MHZ 18PF SMD |
1,975 |
|
Datasheet | HC49/4HSMX | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 8 MHz | ±50ppm | ±30ppm | 18pF | 40 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.449" L x 0.150" W (11.40mm x 3.80mm) | 0.169" (4.30mm) |
|
|
E1SJA18-16.384M TRCRYSTAL 16.3840MHZ 18PF SMD |
1,234 |
|
Datasheet | E1S | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 16.384 MHz | ±30ppm | ±15ppm | 18pF | 50 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.524" L x 0.191" W (13.30mm x 4.85mm) | 0.126" (3.20mm) |
|
ECS-184-S-5PX-TRCRYSTAL 18.4320MHZ SERIES SMD |
1,084 |
|
Datasheet | CSM-7X | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 18.432 MHz | ±50ppm | ±30ppm | Series | 40 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.449" L x 0.189" W (11.40mm x 4.80mm) | 0.169" (4.30mm) |
|
ECS-135.6-20-46XCRYSTAL 13.5600MHZ 20PF TH |
970 |
|
Datasheet | HC-46X | HC-46/X | Bulk | Active | MHz Crystal | 13.56 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms | Fundamental | -10°C ~ 70°C | - | Through Hole | - | 0.268" L x 0.157" W (6.80mm x 4.00mm) | 0.071" (1.80mm) |
|
GB0400005CRYSTAL 4.0000MHZ 16PF TH |
866 |
|
Datasheet | SaRonix-eCera™ GB | HC-49/US | Bulk | Active | MHz Crystal | 4 MHz | ±30ppm | ±30ppm | 16pF | 120 Ohms | Fundamental | -20°C ~ 70°C | - | Through Hole | - | 0.441" L x 0.197" W (11.20mm x 5.00mm) | 0.138" (3.50mm) |
Frequently Asked Questions
What are Crystals components used for?
Crystals components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Crystals part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Crystals parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
