Crystals
Review Crystals Crystals, Oscillators, Resonators components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ABS05W-32.768KHZ-K-2-TCRYSTAL 32.7680KHZ 4PF SMD |
22,884 |
|
Datasheet | ABS05W | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 4pF | 85 kOhms | - | -40°C ~ 125°C | - | Surface Mount | - | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.020" (0.50mm) |
|
ABC2-4.000MHZ-4-TCRYSTAL 4.0000MHZ 18PF SMD |
7,467 |
|
Datasheet | ABC2 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 4 MHz | ±50ppm | ±30ppm | 18pF | 120 Ohms | Fundamental | -10°C ~ 60°C | - | Surface Mount | - | 0.465" L x 0.217" W (11.80mm x 5.50mm) | 0.079" (2.00mm) |
|
|
ABS05W-32.768KHZ-D-2-TCRYSTAL 32.7680KHZ 4PF SMD |
6,566 |
|
Datasheet | ABS05W | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 4pF | 70 kOhms | - | -40°C ~ 85°C | - | Surface Mount | - | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.020" (0.50mm) |
|
|
ABC2-6.000MHZ-4-TCRYSTAL 6.0000MHZ 18PF SMD |
424 |
|
Datasheet | ABC2 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 6 MHz | ±30ppm | ±30ppm | 18pF | 60 Ohms | Fundamental | -10°C ~ 60°C | - | Surface Mount | - | 0.465" L x 0.217" W (11.80mm x 5.50mm) | 0.079" (2.00mm) |
|
ABS25-32.000KHZ-TCRYSTAL 32.0000KHZ 12.5PF SMD |
52,435 |
|
Datasheet | ABS25 | 4-SOJ, 5.50mm pitch | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32 kHz | - | ±30ppm | 12.5pF | 50 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.315" L x 0.150" W (8.00mm x 3.80mm) | 0.098" (2.50mm) |
|
ABM13W-32.0000MHZ-5-DH7G-T5CRYSTAL 32.0000MHZ 5PF SMD |
1,062 |
|
Datasheet | ABM13W | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 32 MHz | ±15ppm | ±7ppm | 5pF | 100 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.047" L x 0.039" W (1.20mm x 1.00mm) | 0.013" (0.33mm) |
|
ABLS-LR-3.072MHZ-TCRYSTAL 3.0720MHZ 18PF SMD |
3,448 |
|
Datasheet | ABLS-LR | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 3.072 MHz | ±100ppm | ±50ppm | 18pF | 100 Ohms | Fundamental | 0°C ~ 70°C | - | Surface Mount | - | 0.449" L x 0.185" W (11.40mm x 4.70mm) | 0.165" (4.20mm) |
.jpg "ABM8-166-114.285MHZ-T2")
|
ABM8-166-114.285MHZ-T2CRYSTAL 114.2850MHZ 18PF SMD |
8,772 |
|
Datasheet | ABM8 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 114.285 MHz | ±20ppm | ±20ppm | 18pF | 80 Ohms | 3rd Overtone | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|

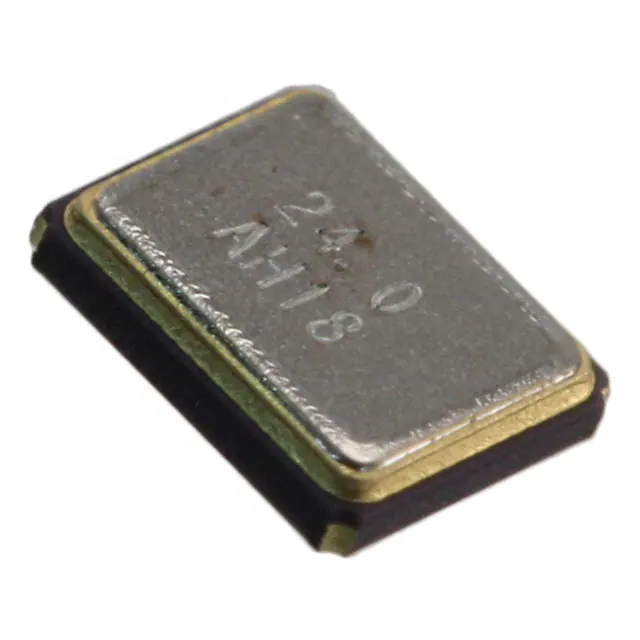

ABM8X-101-24.000MHZ-TCRYSTAL 24.0000MHZ 10PF SMD |
8,528 |
|
Datasheet | ABM8X | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 24 MHz | ±25ppm | ±10ppm | 10pF | 60 Ohms | Fundamental | -40°C ~ 125°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.024" (0.60mm) |
|
AB26T-32.768KHZ-ECRYSTAL 32.7680KHZ 12.5PF TH |
2,527 |
|
Datasheet | AB26T | Cylindrical Can, Radial | Bulk | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 35 kOhms | Fundamental | 0°C ~ 70°C | - | Through Hole | - | 0.083" Dia x 0.244" L (2.10mm x 6.20mm) | - |
Frequently Asked Questions
What are Crystals components used for?
Crystals components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Crystals part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Crystals parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
