Crystals
Explore Crystals parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SXT21410FE48-38.400MCRYSTAL 38.400MHZ 10 PF SMD |
898 |
|
Datasheet | SXT214 | 4-SMD, No Lead | Bulk | Active | MHz Crystal | 38.4 MHz | ±15ppm | ±10ppm | 10pF | 100 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.020" (0.50mm) |
|
CS325-52.000MABJ-UTCRYSTAL 52.0000MHZ 18PF SMD |
717 |
|
Datasheet | CS325 | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | MHz Crystal | 52 MHz | ±50ppm | ±30ppm | 18pF | 50 Ohms | Fundamental | -10°C ~ 60°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.024" (0.60mm) |
|
|
CS06352-24MCRYSTAL 24.0000MHZ 12PF SMD |
10,508 |
|
Datasheet | NX2520SD | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | MHz Crystal | 24 MHz | ±15ppm | ±15ppm | 12pF | 50 Ohms | Fundamental | -30°C ~ 85°C | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.022" (0.55mm) |
|
|
SXT21410FE48-40.000MCRYSTAL 40.000MHZ 10 PF SMD |
3,000 |
|
Datasheet | SXT214 | 4-SMD, No Lead | Bulk | Active | MHz Crystal | 40 MHz | ±15ppm | ±10ppm | 10pF | 100 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.020" (0.50mm) |
|
|
SXT22418FE38-30.000MCRYSTAL 30.000MHZ 18 PF SMD |
2,967 |
|
Datasheet | SXT224 | 4-SMD, No Lead | Bulk | Active | MHz Crystal | 30 MHz | ±15ppm | ±10ppm | 18pF | 60 Ohms | Fundamental | -30°C ~ 85°C | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.026" (0.65mm) |
|
|
SXT22415AA48-30.000MCRYSTAL 30.000MHZ 15 PF SMD |
2,967 |
|
Datasheet | SXT224 | 4-SMD, No Lead | Bulk | Active | MHz Crystal | 30 MHz | ±50ppm | ±50ppm | 15pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.026" (0.65mm) |
|
|
SXT22417DD48-24.576MCRYSTAL 24.576MHZ 17 PF SMD |
1,435 |
|
Datasheet | SXT224 | 4-SMD, No Lead | Bulk | Active | MHz Crystal | 24.576 MHz | ±20ppm | ±20ppm | 17pF | 80 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.026" (0.65mm) |
|
|
SXT22414AA48-24.576MCRYSTAL 24.576MHZ 14 PF SMD |
1,435 |
|
Datasheet | SXT224 | 4-SMD, No Lead | Bulk | Active | MHz Crystal | 24.576 MHz | ±50ppm | ±50ppm | 14pF | 80 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.026" (0.65mm) |
|
XTL2007XTL, SM2520, 54.000 MHZ |
2,900 |
|
Datasheet | - | 4-SMD, No Lead | Strip | Active | MHz Crystal | 54 MHz | ±14ppm | ±3ppm | 15.5pF | 15 Ohms | Fundamental | -40°C ~ 100°C | - | Surface Mount | - | 0.098" L x 0.098" W (2.50mm x 2.50mm) | 0.024" (0.60mm) |
|
|
TZ1125E25/20/10/2.5X2.0 |
240 |
|
Datasheet | - | 4-SMD, No Lead | Cut Tape (CT) | Active | MHz Crystal | 25 MHz | ±20ppm | ±20ppm | 10pF | 30 Ohms | Fundamental | -35°C ~ 85°C | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.024" (0.60mm) |
|
FK255EIVM0.032768-T3CRYSTAL 32.768KHZ 7PF SMT |
3,000 |
|
Datasheet | * | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
YP36K00000S10336KHz Crystal 30ppm 12.5pF |
600,000 |
|
Datasheet | CCMC | 4-SMD, J-Lead | Tape & Reel (TR) | Active | - | 36 kHz | - | ±30ppm | 12.5pF | - | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.315" L x 0.150" W (8.00mm x 3.80mm) | 0.098" (2.50mm) |
|
XTL2008XTL, SM2016, 60.000 MHZ |
3,000 |
|
Datasheet | - | 4-SMD, No Lead | Strip | Active | MHz Crystal | 60 MHz | ±15ppm | ±10ppm | 7pF | 60 Ohms | Fundamental | -30°C ~ 90°C | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.020" (0.50mm) |
|
FP0730017ZCRYSTAL 7.3728MHZ 18PF SMD |
364 |
|
Datasheet | SaRonix-eCera™ FP | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 7.3728 MHz | ±30ppm | ±30ppm | 18pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.049" (1.25mm) |
|
|
TZ3568COAB4450/15/12/2.0X1.6 |
2,940 |
|
Datasheet | - | 4-SMD, No Lead | Cut Tape (CT) | Active | MHz Crystal | 50 MHz | ±50ppm | ±15ppm | 12pF | 30 Ohms | Fundamental | -40°C ~ 125°C | AEC-Q200 | Surface Mount | - | 0.081" L x 0.065" W (2.05mm x 1.65mm) | 0.022" (0.55mm) |
|
ECS-143-20-30B-TRCRYSTAL 14.31818MHZ 20PF SMD |
2,080 |
|
Datasheet | ECX-53B | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 14.31818 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.033" (0.85mm) |
|
LFXTAL003033BULKCRYSTAL 1.8432MHZ 30PF TH |
4,496 |
|
Datasheet | HC49 | HC-49/U | Bulk | Discontinued at Digi-Key | MHz Crystal | 1.8432 MHz | ±50ppm | ±20ppm | 30pF | 800 Ohms | Fundamental | -10°C ~ 60°C | - | Through Hole | - | 0.435" L x 0.183" W (11.05mm x 4.65mm) | 0.530" (13.46mm) |
|

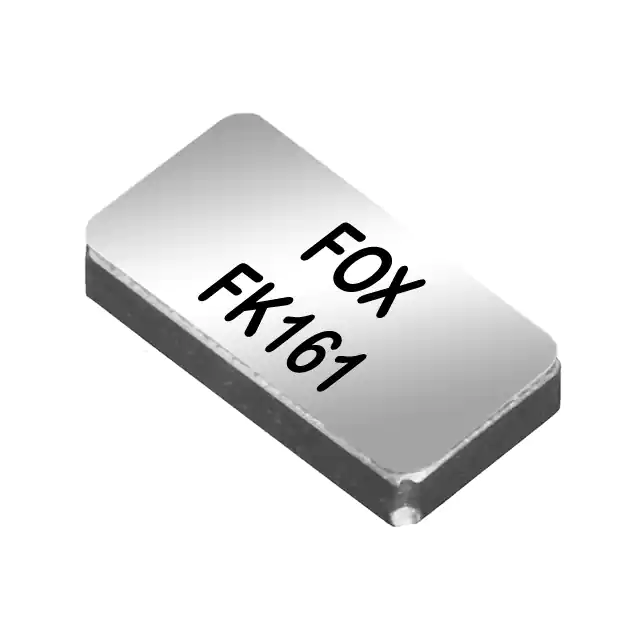

FK161EIWM0.032768-T5CRYSTAL 32.768KHZ 9PF SMT |
5,000 |
|
Datasheet | FK161 | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 9pF | 90 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.020" (0.50mm) |
|
CM250S60.000KAZFTCRYSTAL 60.0000KHZ 12.5PF SMD |
4,997 |
|
Datasheet | CM250S | 4-SOJ, 5.50mm pitch | Tape & Reel (TR) | Obsolete | kHz Crystal (Tuning Fork) | 60 kHz | - | ±30ppm | 12.5pF | 50 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.311" L x 0.146" W (7.90mm x 3.70mm) | 0.098" (2.50mm) |
|
|
TZ3555A26/7/19/2.5X2.0 |
3,000 |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
Frequently Asked Questions
What are Crystals components used for?
Crystals components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Crystals part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Crystals parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
