Circuit Breakers
Explore Circuit Breakers parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Breaker Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Number of Poles | Illumination | Illumination Voltage (Nominal) | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CBW28-1.5AFUSEHOLDER TYPE CB-TYPE III,1.5A |
102 |
|
Datasheet | CBW28 | Bulk | Active | Panel Mount | Thermal | 1.5A | 250 V | 32 V | Push to Reset | 1 | None | - | cURus, IP 40, UL 1077 |
.jpg "CBW58-HS-15A-5C")
|
CBW58-HS-15A-5CCIR BRKR THRM 15A 250VAC 50VDC |
2,411 |
|
Datasheet | CBW58 | Bulk | Active | Panel Mount | Thermal | 15A | 250 V | 50 V | Push to Reset | 1 | None | - | cURus, IP 40, SAE J1171, UL 1077, UL 1500 |
.jpg "CBW58-HS-20A-5C")
|
CBW58-HS-20A-5CCIR BRKR THRM 20A 250VAC 50VDC |
1,847 |
|
Datasheet | CBW58 | Bulk | Active | Panel Mount | Thermal | 20A | 250 V | 50 V | Push to Reset | 1 | None | - | cURus, IP 40, SAE J1171, UL 1077, UL 1500 |
.jpg "CBW58-HS-10A-5C")
|
CBW58-HS-10A-5CCIR BRKR THRM 10A 250VAC 50VDC |
1,602 |
|
Datasheet | CBW58 | Bulk | Active | Panel Mount | Thermal | 10A | 250 V | 50 V | Push to Reset | 1 | None | - | cURus, IP 40, SAE J1171, UL 1077, UL 1500 |
.jpg "CBW58-HS-7A-5C")
|
CBW58-HS-7A-5CCIR BRKR THRM 7A 250VAC 50VDC |
618 |
|
Datasheet | CBW58 | Bulk | Active | Panel Mount | Thermal | 7A | 250 V | 50 V | Push to Reset | 1 | None | - | cURus, IP 40, SAE J1171, UL 1077, UL 1500 |
.jpg "CBW58-HS-5A-5C")
|
CBW58-HS-5A-5CCIR BRKR THRM 5A 250VAC 50VDC |
616 |
|
Datasheet | CBW58 | Bulk | Active | Panel Mount | Thermal | 5A | 250 V | 50 V | Push to Reset | 1 | None | - | cURus, IP 40, SAE J1171, UL 1077, UL 1500 |
.jpg "CBW58-HS-25A-5C")
|
CBW58-HS-25A-5CCIR BRKR THRM 25A 250VAC 50VDC |
374 |
|
Datasheet | CBW58 | Bulk | Active | Panel Mount | Thermal | 25A | 250 V | 50 V | Push to Reset | 1 | None | - | cURus, IP 40, SAE J1171, UL 1077, UL 1500 |
.jpg "CBW58-HS-3A-5C")
|
CBW58-HS-3A-5CCIR BRKR THRM 3A 250VAC 50VDC |
303 |
|
Datasheet | CBW58 | Bulk | Active | Panel Mount | Thermal | 3A | 250 V | 50 V | Push to Reset | 1 | None | - | cURus, IP 40, SAE J1171, UL 1077, UL 1500 |
|
ACB2-PL-40AFUSE FOOTPRINT CB-TYPE I , 40A |
288 |
|
Datasheet | ACB2-PL | Bulk | Active | - | - | 40A | - | 12 V | Automatic Reset | 1 | None | - | SAE J553 |
.jpg "CBW58-ES-10A-5X")
|
CBW58-ES-10A-5XCIR BRKR THRM 10A 250VAC 50VDC |
972 |
|
Datasheet | CBW58 | Bulk | Active | Panel Mount | Thermal | 10A | 250 V | 50 V | Push to Reset | 1 | None | - | cURus, IP 40, SAE J1171, UL 1077, UL 1500 |
|
CBW58-ES-30A-5PCIR BRKR THRM 30A 250VAC 50VDC |
1,001 |
|
Datasheet | CBW58 | Bulk | Active | Panel Mount | Thermal | 30A | 250 V | 50 V | Push to Reset | 1 | None | - | cURus, IP 40, SAE J1171, UL 1077, UL 1500 |
|
ACBP4-PL-15AREG. FUSE FOOTPR. CB-TYPE I, 15A |
6,308 |
|
Datasheet | ACBP4-PL | Bulk | Active | - | - | 15A | - | 14 V | Automatic Reset | 1 | None | - | SAE J553 |
|
ACBP4-PL-5AREG. FUSE FOOTPR. CB-TYPE I, 5A |
5,895 |
|
Datasheet | ACBP4-PL | Bulk | Active | - | - | 5A | - | 14 V | Automatic Reset | 1 | None | - | SAE J553 |
|
MRCBP4-PL-25AREG. FUSE FOOTPR CB-TYPE III,25A |
5,725 |
|
Datasheet | MRCBP4-PL | Bulk | Active | - | - | 25A | - | 28 V | Push to Reset | 1 | None | - | SAE J553 |
|
MRCBP4-PL-15AREG. FUSE FOOTPR CB-TYPE III,15A |
4,625 |
|
Datasheet | MRCBP4-PL | Bulk | Active | - | - | 15A | - | 28 V | Push to Reset | 1 | None | - | SAE J553 |
|
ACBP4-PL-6AREG. FUSE FOOTPR. CB-TYPE I, 6A |
3,776 |
|
Datasheet | ACBP4-PL | Bulk | Active | - | - | 6A | - | 14 V | Automatic Reset | 1 | None | - | SAE J553 |
|
MRCBP4-PL-10AREG. FUSE FOOTPR CB-TYPE III,10A |
3,691 |
|
Datasheet | MRCBP4-PL | Bulk | Active | - | - | 10A | - | 28 V | Push to Reset | 1 | None | - | SAE J553 |
|
ACBP4-PL-20AREG. FUSE FOOTPR. CB-TYPE I, 20A |
3,656 |
|
Datasheet | ACBP4-PL | Bulk | Active | - | - | 20A | - | 14 V | Automatic Reset | 1 | None | - | SAE J553 |
|

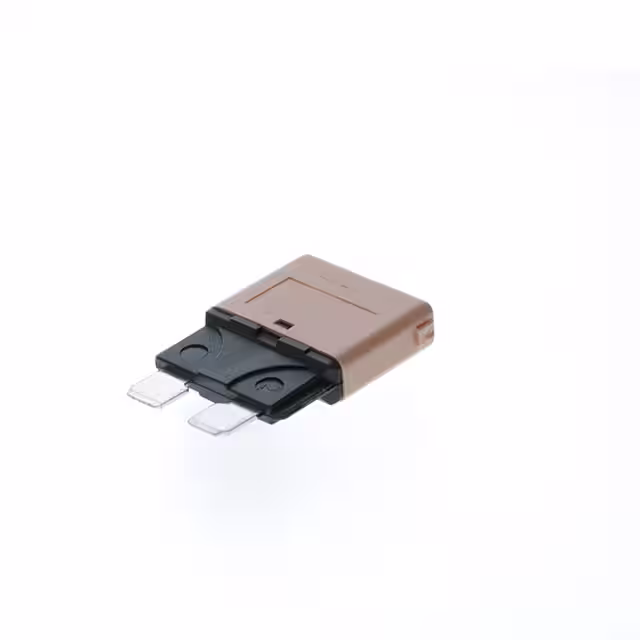

MRCBP4-PL-5AREG. FUSE FOOTPR CB-TYPE III, 5A |
2,975 |
|
Datasheet | MRCBP4-PL | Bulk | Active | - | - | 5A | - | 28 V | Push to Reset | 1 | None | - | SAE J553 |
|

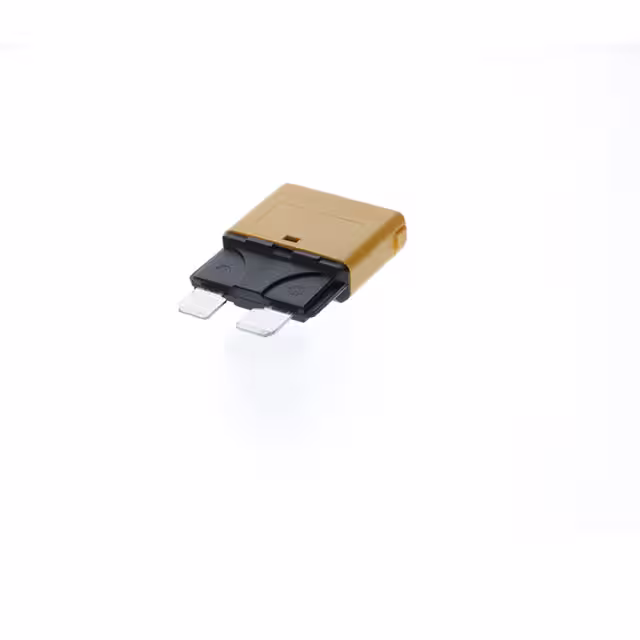

MRCBP4-PL-20AREG. FUSE FOOTPR CB-TYPE III,20A |
1,485 |
|
Datasheet | MRCBP4-PL | Bulk | Active | - | - | 20A | - | 28 V | Push to Reset | 1 | None | - | SAE J553 |
Frequently Asked Questions
What are Circuit Breakers components used for?
Circuit Breakers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Circuit Breakers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Circuit Breakers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
