Single Bipolar Transistors
Review Single Bipolar Transistors Bipolar (BJT) components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | DC Current Gain (hFE) (Min) @ Ic, Vce | Power - Max | Frequency - Transition | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2SD12720PTRANS NPN 150V 2.5A TO-220F-A1 |
9,582 |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Obsolete | NPN | 2.5 A | 150 V | 1V @ 20mA, 500mA | 100µA (ICBO) | 800 @ 200mA, 4V | 2 W | 25MHz | 150°C (TJ) | - | - | Through Hole | TO-220F-A1 |
|
2SD14850PTRANS NPN 100V 5A TOP-3F-A1 |
2,498 |
|
Datasheet | - | TOP-3F | Bulk | Obsolete | NPN | 5 A | 100 V | 2V @ 300mA, 3A | 50µA (ICBO) | 100 @ 1A, 5V | 3 W | 20MHz | 150°C (TJ) | - | - | Through Hole | TOP-3F-A1 |
|
|
2SD1535TRANS NPN DARL 400V 7A TO220F-A1 |
5,748 |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Obsolete | NPN - Darlington | 7 A | 400 V | 2V @ 70mA, 7A | 100µA | 500 @ 2A, 2V | 2 W | 20MHz | 150°C (TJ) | - | - | Through Hole | TO-220F-A1 |
|
|
2SD16330PTRANS NPN DARL 100V 5A TO220F-A1 |
3,243 |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Obsolete | NPN - Darlington | 5 A | 100 V | 1.5V @ 3mA, 3A | 100µA | 5000 @ 3A, 3V | 2 W | 15MHz | 150°C (TJ) | - | - | Through Hole | TO-220F-A1 |
|

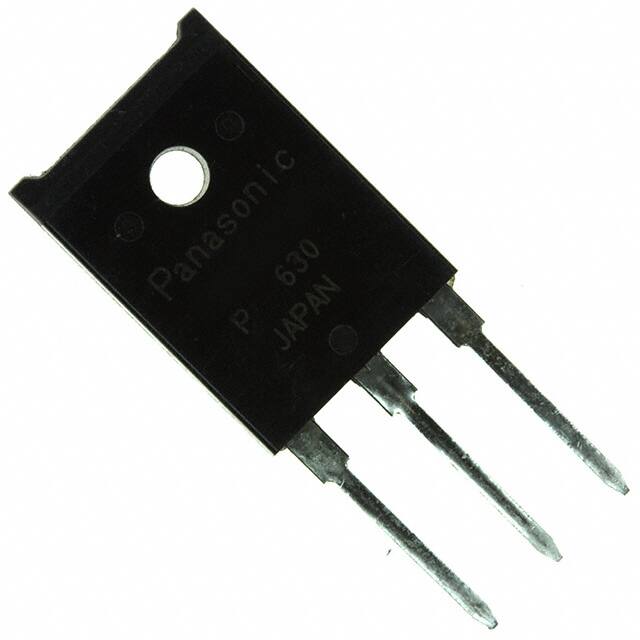

2SD17050PTRANS NPN 80V 10A TOP-3F-A1 |
4,973 |
|
Datasheet | - | TOP-3F | Bulk | Obsolete | NPN | 10 A | 80 V | 1.5V @ 1A, 10A | 10µA (ICBO) | 130 @ 3A, 2V | 3 W | 20MHz | 150°C (TJ) | - | - | Through Hole | TOP-3F-A1 |
|
2SD18230RLTRANS NPN 40V 0.05A SMINI3-G1 |
5,138 |
|
Datasheet | - | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | NPN | 50 mA | 40 V | 200mV @ 1mA, 10mA | 1µA | 400 @ 2mA, 10V | 150 mW | 120MHz | 150°C (TJ) | - | - | Surface Mount | SMini3-G1 |
|
2SD20670RATRANS NPN DARL 100V 2A MT-2-A1 |
8,772 |
|
Datasheet | - | 3-SIP | Tape & Box (TB) | Obsolete | NPN - Darlington | 2 A | 100 V | 1.5V @ 1mA, 1A | 100nA (ICBO) | 8000 @ 1A, 10V | 1 W | - | 150°C (TJ) | - | - | Through Hole | MT-2-A1 |
|
2SD2138APATRANS NPN DARL 80V 2A MT-4-A1 |
2,445 |
|
Datasheet | - | 3-SIP | Tape & Box (TB) | Obsolete | NPN - Darlington | 2 A | 80 V | 2.5V @ 8mA, 2A | 100µA | 4000 @ 2A, 4V | 15 W | 20MHz | 150°C (TJ) | - | - | Through Hole | MT-4-A1 |
|
|
2SD21840RATRANS NPN 150V 1A MT-2-A1 |
7,908 |
|
Datasheet | - | 3-SIP | Tape & Box (TB) | Obsolete | NPN | 1 A | 150 V | 300mV @ 25mA, 500mA | 100nA (ICBO) | 120 @ 100mA, 2V | 1 W | 90MHz | 150°C (TJ) | - | - | Through Hole | MT-2-A1 |
|
|
2SD225900ATRANS NPN 20V 0.7A MT-2-A1 |
6,206 |
|
Datasheet | - | 3-SIP | Tape & Box (TB) | Obsolete | NPN | 700 mA | 20 V | 400mV @ 50mA, 500mA | 10µA | 1000 @ 150mA, 10V | 1 W | 55MHz | 150°C (TJ) | - | - | Through Hole | MT-2-A1 |
Frequently Asked Questions
What are Single Bipolar Transistors components used for?
Single Bipolar Transistors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Bipolar Transistors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Bipolar Transistors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
