Automotive Relays
Explore Automotive Relays parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2-1904025-5V23234A0004X053-EV-100 |
2,302 |
|
Datasheet | Power Relay B | Bulk | Obsolete | Non Latching | 94 mA | 24VDC | SPDT (1 Form C) | 50 A | 24VDC - Nom | 16 VDC | 3 VDC | 10 ms | 10 ms | Resistor | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
5-1393303-0RELAY GEN PURPOSE SPST 20A 24V |
4,527 |
|
Datasheet | F4 | Bulk | Active | Non Latching | 74.1 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14.4 VDC | 3.2 VDC | 7 ms | 2 ms | - | Chassis Mount | Plug In, Quick Connect - 0.110" (2.8mm) | -40°C ~ 125°C |
|
CM1A-D-24VCM RELAY 1 FORM A 24V |
2,728 |
|
Datasheet | CM | Bulk | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 15 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 10 ms | 15 ms | Diode, Sealed - Fully | Socketable | Plug In | -40°C ~ 85°C |
|
|
4-1393303-7RELAY GEN PURPOSE SPST 40A 12V |
3,062 |
|
Datasheet | F4 | Bulk | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | Chassis Mount | Plug In, Quick Connect - 0.110" (2.8mm) | -40°C ~ 125°C |
|
|
1-1393302-6RELAY AUTOMOTIVE SPST 70A 12V |
2,124 |
|
Datasheet | VF7 | Tray | Active | Non Latching | 166 mA | 12VDC | SPST-NO (1 Form A) | 70 A | 12VDC - Nom | 7.2 VDC | 1.2 VDC | - | - | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | - |
|
|
02040716ZRELAY AUTOMOTIVE SPDT 40A 12V |
4,435 |
|
Datasheet | ISO MINI® | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 40 A | 12VDC - Nom | - | - | - | - | Diode | Socketable | Plug In | - |
|
|
5-1393304-6V23134M0052C642 |
2,804 |
|
Datasheet | V23134, AXICOM | Box | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 12VDC - Nom | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
6-1393304-7RELAY GEN PURPOSE DPST 15A 24V |
3,716 |
|
Datasheet | F4 | Box | Active | Non Latching | 74.1 mA | 24VDC | DPST-NO (2 Form A) | 15 A | 28VDC - Nom | 14.4 VDC | 3.2 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
3-1393303-8RELAY GEN PURPOSE SPST 20A 24V |
1,166 |
|
Datasheet | F4 | Bulk | Active | Non Latching | 74.1 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14.4 VDC | 3.2 VDC | 7 ms | 2 ms | Resistor | Chassis Mount | Plug In, Quick Connect - 0.110" (2.8mm) | -40°C ~ 125°C |
|
|
02040603ZRELAY AUTOMOTIVE SPDT 20A 12V |
1,685 |
|
Datasheet | MICRO | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 20 A | 12VDC - Nom | - | - | - | - | - | Socketable | Plug In | - |
|
|
02040601ZRELAY AUTOMOTIVE SPST 25A 12V |
3,927 |
|
Datasheet | MICRO | Bulk | Obsolete | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 25 A | 12VDC - Nom | - | - | - | - | - | Socketable | Plug In | - |
|
|
4-1904049-7V23134A0007X942-EV-590 |
1,580 |
|
Datasheet | V23134, AXICOM | Bulk | Active | Non Latching | - | - | - | - | 12VDC - Nom | - | - | 7 ms | 2 ms | - | - | - | -40°C ~ 125°C |
|
|
1904056-2V23134A0007X936-EV-441 |
3,118 |
|
Datasheet | V23134, AXICOM | Bulk | Active | Non Latching | - | - | - | - | 12VDC - Nom | - | - | 7 ms | 2 ms | - | - | - | -40°C ~ 125°C |
|
|
3-1904131-0RELAY V23134-B4052-X546 |
1,852 |
|
Datasheet | V23134, AXICOM | Bulk | Active | Non Latching | - | 12VDC | - | - | 12VDC - Nom | - | - | 7 ms | 2 ms | - | - | - | -40°C ~ 125°C |
|
|
5-1393304-8POWER F V23134 |
2,908 |
|
Datasheet | V23134, AXICOM | Bulk | Active | Non Latching | 133.3 mA | 12VDC | DPST-NO (2 Form A) | 25 A | 14VDC - Nom | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
8-1904049-6V23134A0007X933-EV-850 |
3,981 |
|
Datasheet | V23134, AXICOM | Bulk | Active | Non Latching | - | - | - | - | 12VDC - Nom | - | - | 7 ms | 2 ms | - | - | - | -40°C ~ 125°C |
|

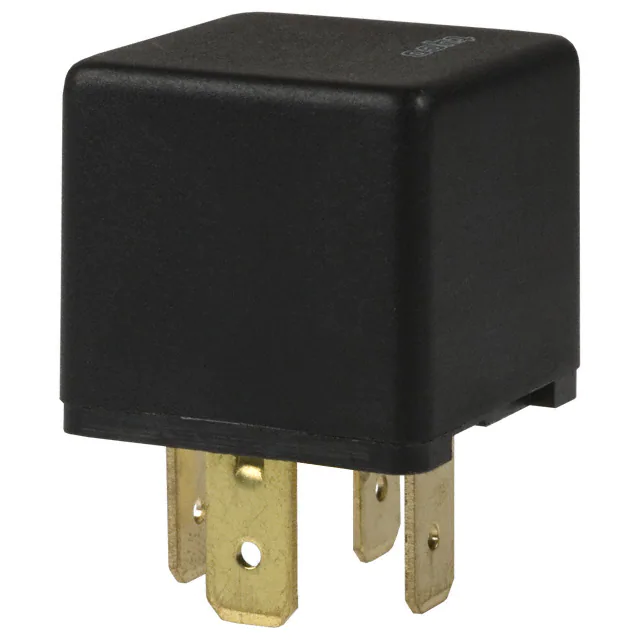

V23134-A3052-X540RELAY GEN PURPOSE SPDT 40A 12V |
2,185 |
|
Datasheet | VF4 | Bulk | Active | Non Latching | 133 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7.2 VDC | 1.2 VDC | 7 ms | 2 ms | Resistor | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
1904002-2RELAY AUTO SPST-NO 50A 24V |
1,980 |
|
Datasheet | HCR 75 | Bulk | Obsolete | Non Latching | - | 24VDC | SPST-NO (1 Form A) | 50 A | 24VDC - Nom | 19 VDC | 1 VDC | - | - | - | Chassis Mount | Screw Terminal, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
1904001-4RELAY AUTO SPST-NO 30A 24V |
2,344 |
|
Datasheet | HCR 75 | Bulk | Obsolete | Non Latching | - | 24VDC | SPST-NO (1 Form A) | 30 A | 24VDC - Nom | 19 VDC | 1 VDC | 7 ms | 2 ms | - | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|

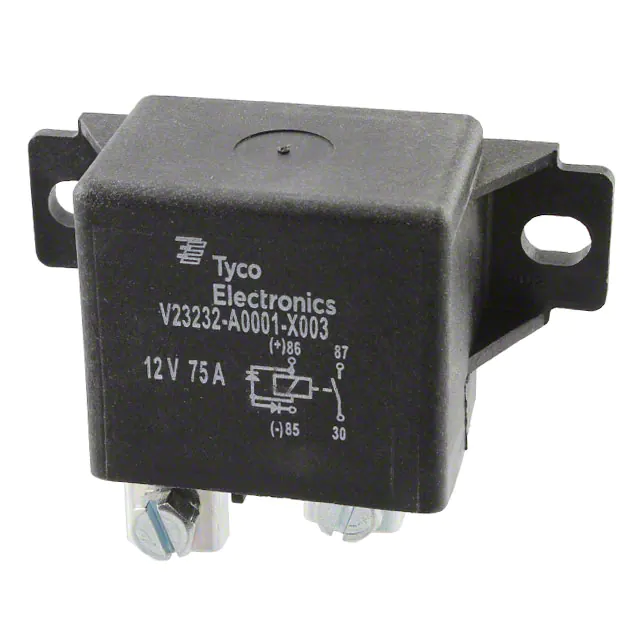

1904001-2RELAY AUTO SPST-NO 75A 12V |
4,784 |
|
Datasheet | HCR 75 | Bulk | Obsolete | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 75 A | 12VDC - Nom | 8 VDC | 4 VDC | 10 ms | 15 ms | - | Chassis Mount | Screw Terminal | -40°C ~ 100°C |
Frequently Asked Questions
What are Automotive Relays components used for?
Automotive Relays components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Automotive Relays part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Automotive Relays parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
