Automotive Relays
Explore Automotive Relays parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A31CCQ24VDC1DRELAY AUTOMOTIVE SPDT 60A 24V |
3,196 |
|
Datasheet | A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 60 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
ACTP512RELAY AUTOMOTIVE SPDTX2 30A 12V |
4,571 |
|
Datasheet | ACTP | Tube | Active | Non Latching | 83.3 mA | 12VDC | SPDT (1 Form C) x 2 | 30 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
A2S1CSQ48VDC1.6RELAY AUTOMOTIVE SPDT 40A 48V |
4,268 |
|
Datasheet | A2 | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
CM1F-12VRELAY AUTOMOTIVE SPDT 35A 12V |
2,704 |
|
Datasheet | CM | Bulk | Active | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Flux Protection | Socketable | Plug In | -40°C ~ 85°C |
|
A31CSP24VDC2DRELAY AUTOMOTIVE SPDT 80A 24V |
4,534 |
|
Datasheet | A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|

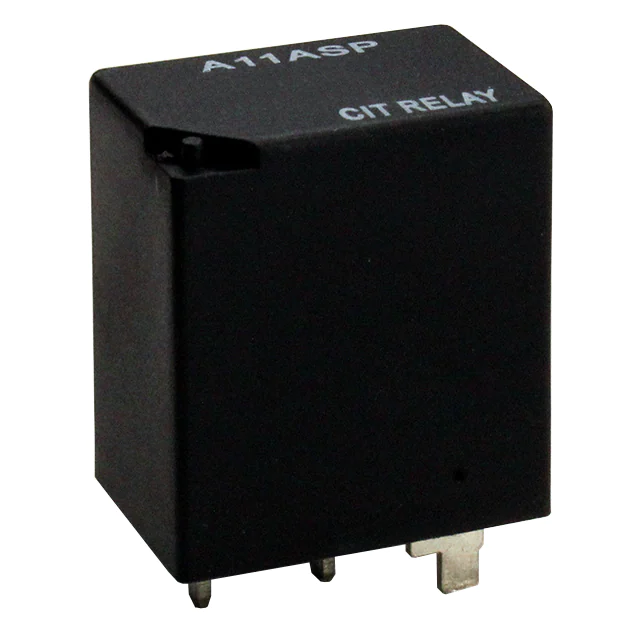

A11ASP24VDC1.2DRELAY AUTOMOTIVE SPST 30A 24V |
2,626 |
|
Datasheet | A1 | Tube | Active | Non Latching | 50 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
ACJ1212PRELAY AUTOMOTIVE SPDT 20A 12V |
3,330 |
|
Datasheet | ACJ | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 20 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | Sealed - Flux Protection | Through Hole | PC Pin | -40°C ~ 85°C |
|

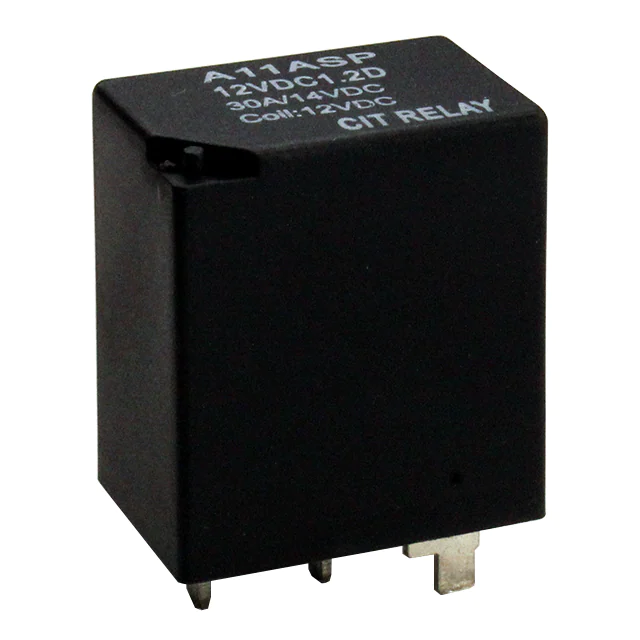

A11ASP12VDC1.2DRELAY AUTOMOTIVE SPST 30A 12V |
4,554 |
|
Datasheet | A1 | Tube | Active | Non Latching | 100 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

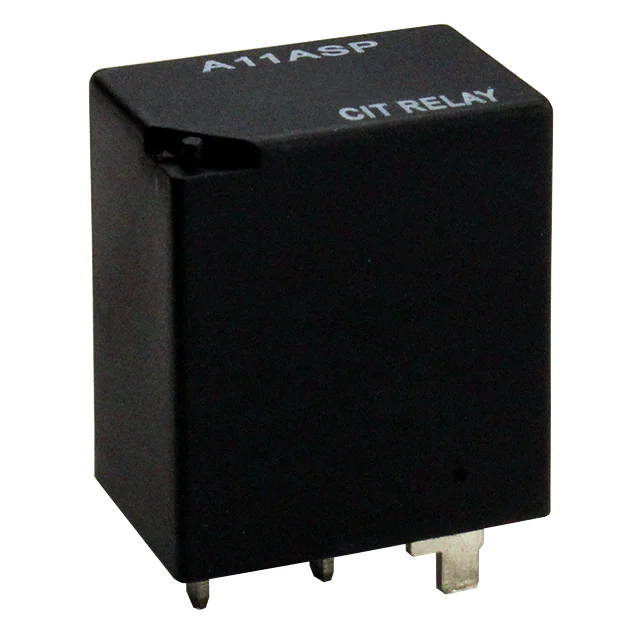

A11ASP24VDC1.5RRELAY AUTOMOTIVE SPST 30A 24V |
2,322 |
|
Datasheet | A1 | Tube | Active | Non Latching | 62.5 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

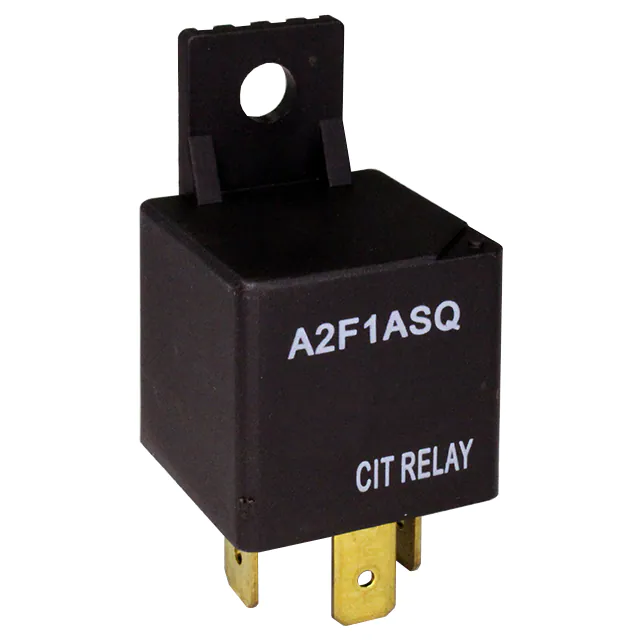

A2F1ASQ24VDC1.6RRELAY AUTOMOTIVE SPST 40A 24V |
4,780 |
|
Datasheet | A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

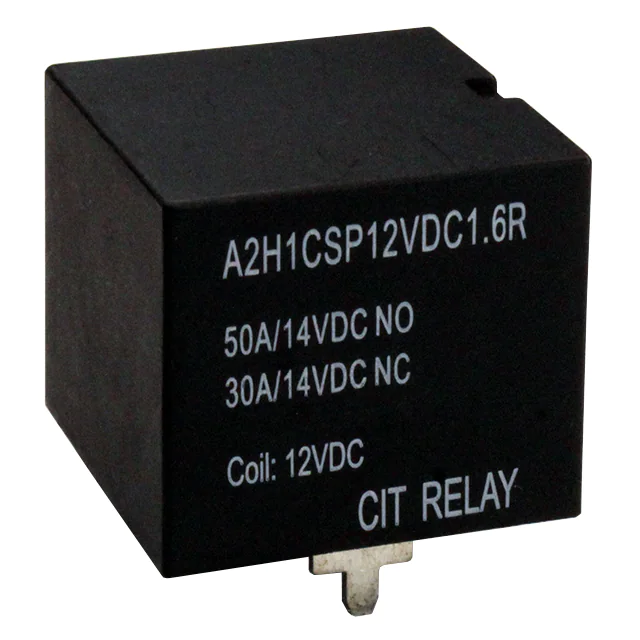

A2H1CSP12VDC1.6RRELAY AUTOMOTIVE SPDT 50A 12V |
2,538 |
|
Datasheet | A2H | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Resistor | Through Hole | PC Pin | -40°C ~ 125°C |
|
A21CSQ48VDC1.6DRELAY AUTOMOTIVE SPDT 40A 48V |
3,769 |
|
Datasheet | A2 | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
AZ9731-1A-12DC4R1RELAY AUTOMOTIVE SPST 40A 12V |
2,140 |
|
Datasheet | AZ9731 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | Resistor, MINI-ISO, Shrouded w/ Steel Bracket Sealed - Epoxy | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

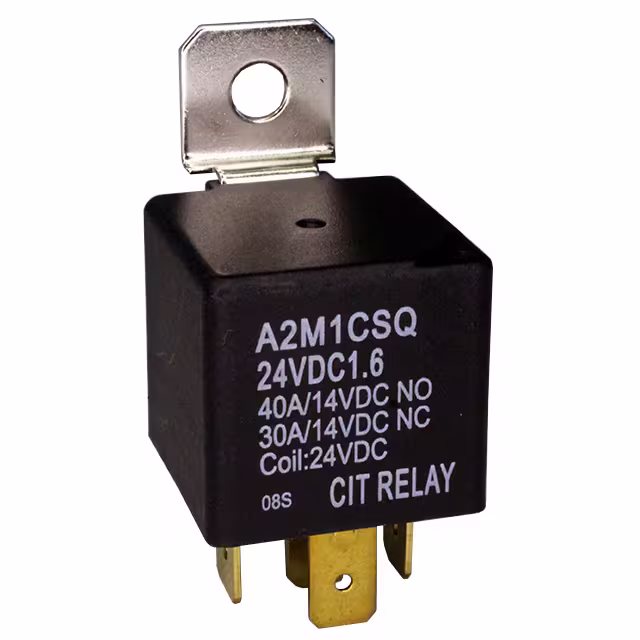

A2M1CSQ24VDC1.6RRELAY AUTOMOTIVE SPDT 40A 24V |
4,017 |
|
Datasheet | A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

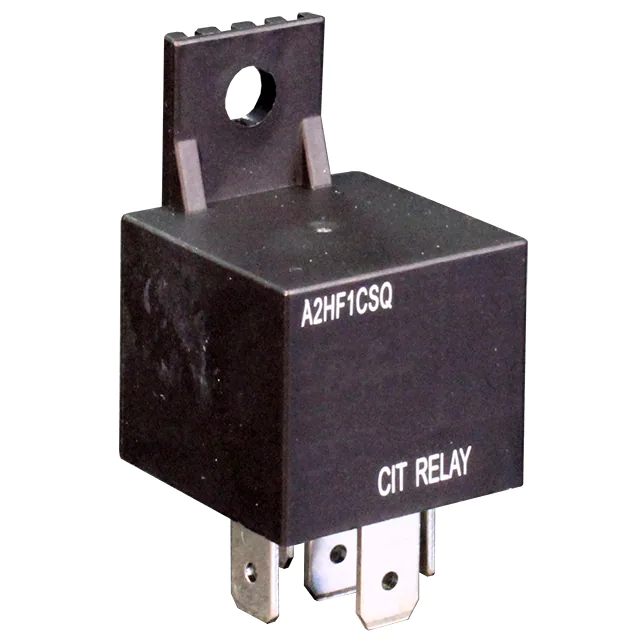

A2HF1CSQ24VDC1.6RELAY AUTOMOTIVE SPDT 50A 24V |
3,857 |
|
Datasheet | A2H | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

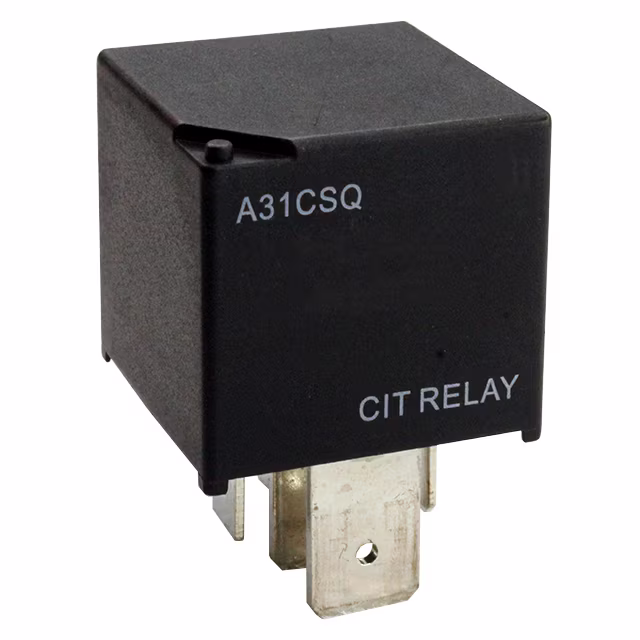

A31CSQ24VDC2RELAY AUTOMOTIVE SPDT 80A 24V |
1,619 |
|
Datasheet | A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A2S1ASQ48VDC1.6DRELAY AUTOMOTIVE SPST 40A 48V |
3,005 |
|
Datasheet | A2 | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A61CS12VDC.9RELAY AUTOMOTIVE SPDT 30A 12V |
2,978 |
|
Datasheet | A6 | Tray | Active | Non Latching | 75 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A31CCQ24VDC1RELAY AUTOMOTIVE SPDT 60A 24V |
2,318 |
|
Datasheet | A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 60 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | - | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
CB1-T-R-M-12VCB RELAY WITH ISO TERMINAL |
1,318 |
|
Datasheet | CB | Bulk | Active | Non Latching | 134 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
Frequently Asked Questions
What are Automotive Relays components used for?
Automotive Relays components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Automotive Relays part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Automotive Relays parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
