Audio Transformers
Review Audio Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Turns Ratio - Primary:Secondary | Impedance - Primary (Ohms) | Impedance - Secondary (Ohms) | DC Resistance (DCR) - Primary | DC Resistance (DCR) - Secondary | Transformer Type | Frequency Range | Frequency Response | Voltage - Isolation | Insertion Loss | Return Loss | Power Level | Operating Temperature | Approval Agency | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
140NEXAUDIO XFMR 50 / 1.5K CHAS MNT |
4,630 |
|
Datasheet | 140EX | Bulk | Active | 1:5.47 | 50 | 1.5k | 5.3Ohm | 116.5Ohm | - | 20Hz ~ 20kHz | ±1dB | 500Vrms | 0.9dB Typ | 28dB Typ | 10dB | - | - | Chassis Mount | 1.250" Dia (31.75mm) | 1.000" (25.40mm) | Screw Terminal |
|
1140-LU-CAUDIO XFMR 600 / 600 CHAS MNT |
2,367 |
|
Datasheet | 1140 | Bulk | Active | 1:1 | 600 | 600 | 40Ohm | 40Ohm | Line (Audio Power Distribution) | 20Hz ~ 20kHz | - | 200V | - | - | - | - | - | Chassis Mount | 1.700" L x 1.190" W (43.18mm x 30.23mm) | 1.380" (35.05mm) | Wire Leads |
|
|
H302258AUDIO TRANSFORMER, STUDIO GRADE |
4,944 |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | General Purpose | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1140-MN-AAUDIO XFMR 150OHM / 15K CHAS MNT |
4,621 |
|
Datasheet | 1140 | Bulk | Active | 1:10 | 150Ohm | 15k | - | - | Impedance Matching | 20Hz ~ 20kHz | ±0.35dB | - | - | - | - | - | - | Chassis Mount | - | - | Screw Terminal |
|
|
PWDM13226XFRMR VIKING II MOD 795VCT 500VA |
3,274 |
|
Datasheet | * | Case | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1140-LU-EAUDIO XFMR 600 / 600 CHAS MNT |
1,507 |
|
Datasheet | 1140 | Bulk | Active | 1:1 | 600 | 600 | 40Ohm | 40Ohm | Line (Audio Power Distribution) | 20Hz ~ 20kHz | - | 250V | - | - | - | - | - | Chassis Mount | 1.950" L x 1.300" W (49.53mm x 33.02mm) | 1.625" (41.28mm) | Wire Leads |
|
|
1750YAAUDIO XFMR CHAS MNT |
4,714 |
|
Datasheet | 175 | Bulk | Active | - | - | - | - | - | Push-Pull Audiophile, Ultra-Linear - Tube Output | 65Hz ~ 12kHz | ±1dB | 2000V | - | - | 50W | - | - | Chassis Mount | - | 3.046" (77.37mm) | Wire Leads |
|

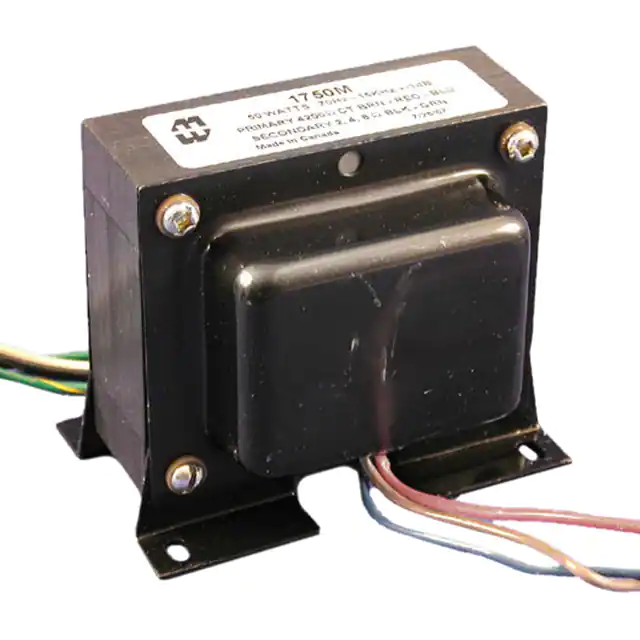

1750MXFMR 4.2KCT / 2, 4, 8 CHAS MNT |
2,367 |
|
Datasheet | 1750 | Box | Active | 22.93:1 | 4.2kCT | 2, 4, 8 | 68Ohm | 160mOhm | Push-Pull Audiophile, Ultra-Linear - Tube Output | 70Hz ~ 15kHz | ±1dB | - | - | - | 60W | - | - | Chassis Mount | 4.050" L x 3.050" W (102.87mm x 77.47mm) | 3.563" (90.50mm) | Wire Leads |
|
|
1140-MS-BAUDIO XFMR 150 CHAS MNT |
2,047 |
|
Datasheet | 1140 | Bulk | Active | 1:1 | 150 | - | 48Ohm | - | Impedance Matching | 20Hz ~ 20kHz | - | 500Vrms | - | - | - | - | - | Chassis Mount | 1.250" Dia (31.75mm) | - | Wire Leads |
|
|
1615XFMR 5KCT / 4, 8, 16 CHAS MNT |
2,702 |
|
Datasheet | 1600 | Bulk | Active | - | 5kCT | 4, 8, 16 | - | - | Push-Pull Audiophile, Ultra-Linear - Tube Output | 30Hz ~ 30kHz | ±1dB | - | ±1dB | - | 15W | - | - | Chassis Mount | 3.250" L x 2.500" W (82.55mm x 63.50mm) | 3.060" (77.72mm) | Wire Leads |
Frequently Asked Questions
What are Audio Transformers components used for?
Audio Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Audio Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Audio Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
