Audio Transformers
Review Audio Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Turns Ratio - Primary:Secondary | Impedance - Primary (Ohms) | Impedance - Secondary (Ohms) | DC Resistance (DCR) - Primary | DC Resistance (DCR) - Secondary | Transformer Type | Frequency Range | Frequency Response | Voltage - Isolation | Insertion Loss | Return Loss | Power Level | Operating Temperature | Approval Agency | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
106VAUDIO XFMR 250CT / 8 TH |
1,909 |
|
Datasheet | 106 | Bulk | Active | - | 250CT | 8 | 11Ohm | 700mOhm | Miniature Epoxy Potted | 170Hz | -1dB | 200V | 1dB | - | 1.5W | - | - | Through Hole | 1.080" L x 0.880" W (27.43mm x 22.35mm) | 0.950" (24.13mm) | PC Pin |
|
|
106SAUDIO XFMR 100CT / 3.2 TH |
2,575 |
|
Datasheet | 106 | Bulk | Active | - | 100CT | 3.2 | 4.4Ohm | 300mOhm | Miniature Epoxy Potted | 170Hz | -1dB | 200V | 1dB | - | 1.5W | - | - | Through Hole | 1.080" L x 0.880" W (27.43mm x 22.35mm) | 0.950" (24.13mm) | PC Pin |
|
|
106XAUDIO XFMR 500CT / 8 TH |
1,882 |
|
Datasheet | 106 | Bulk | Active | - | 500CT | 8 | 26Ohm | 700mOhm | Miniature Epoxy Potted | 170Hz | -1dB | 200V | 1dB | - | 1.5W | - | - | Through Hole | 1.080" L x 0.880" W (27.43mm x 22.35mm) | 0.950" (24.13mm) | PC Pin |
|
125HAUDIO XFMR 10K / 2, 4, 8 CHAS MT |
2,149 |
|
Datasheet | 125 | Bulk | Active | - | 10k | 2, 4, 8 | - | - | General Purpose | 150Hz ~ 15kHz | ±1dB | - | - | - | 8W | - | - | Chassis Mount | 2.810" L x 1.000" W (71.37mm x 25.40mm) | 1.630" (41.40mm) | Wire Leads |
|
119Y100AUDIO XFMR 16, 8 / 70V CHAS MNT |
2,021 |
|
Datasheet | 119 | Bulk | Active | - | 16, 8 | 70V | - | - | Sound Distribution | 50Hz ~ 10kHz | - | 70V | - | - | 100W | - | - | Chassis Mount | 3.500" L x 3.130" W (88.90mm x 79.50mm) | 3.810" (96.77mm) | Wire Leads |
|
|
119Y250AUDIO XFMR 16, 8 / 70V CHAS MNT |
2,659 |
|
Datasheet | 119 | Bulk | Active | - | 16, 8 | 70V | - | - | Sound Distribution | 50Hz ~ 10kHz | - | 70V | - | - | 250W | - | - | Chassis Mount | 4.250" L x 3.130" W (107.95mm x 79.50mm) | 3.810" (96.77mm) | Wire Leads |
|
125GSEXFMR 2.5K-10K / 4-32 CHAS MNT |
2,233 |
|
Datasheet | 125SE | Box | Active | - | 2.5k ~ 10k | 4 ~ 32 | 50Ohm | 250mOhm | General Purpose | 100Hz ~ 15kHz | ±1dB | 2000V @ 1 Second | - | - | 25W | - | - | Chassis Mount | 4.150" L x 2.880" W (105.41mm x 73.15mm) | 3.460" (87.88mm) | Solder Lug |
|
126AAUDIO XFMR 5K / 5K CHAS MNT |
2,188 |
|
Datasheet | 126 | Box | Active | - | 5k | 5k | 178Ohm | 178Ohm | Single Ended Audiophile, Ultra-Linear - Tube Output | 20Hz ~ 20kHz | ±1dB | 400VDC | - | - | 4W | - | - | Chassis Mount | 3.120" L x 2.500" W (79.25mm x 63.50mm) | 3.120" (79.25mm) | Wire Leads |
|

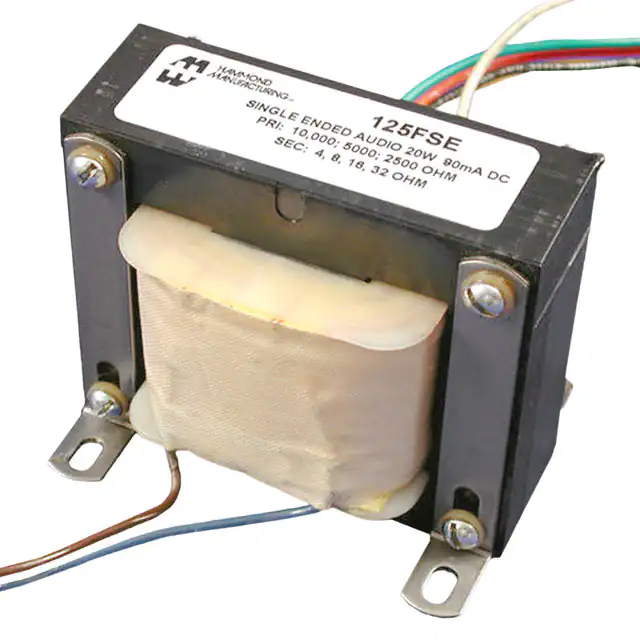

125FSEXFMR 2.5K-10K / 4-32 CHAS MNT |
3,242 |
|
Datasheet | 125SE | Box | Active | - | 2.5k ~ 10k | 4 ~ 32 | - | - | General Purpose | 100Hz ~ 15kHz | ±1dB | - | - | - | 20W | - | - | Chassis Mount | 3.760" L x 2.520" W (95.50mm x 64.01mm) | 3.150" (80.01mm) | Solder Lug |
|
1615AXFMR 5KCT / 4, 8, 16 CHAS MNT |
4,647 |
|
Datasheet | A | Box | Active | - | 5kCT | 4, 8, 16 | 84.46Ohm, 96.25Ohm | 130mOhm, 210mOhm, 270mOhm | Push-Pull Audiophile, Ultra-Linear - Tube Output | 30Hz ~ 30kHz | ±1dB | 2000V @ 1 Second | - | - | 15W | - | - | Chassis Mount | 3.250" L x 2.500" W (82.55mm x 63.50mm) | 3.060" (77.72mm) | Wire Leads |
Frequently Asked Questions
What are Audio Transformers components used for?
Audio Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Audio Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Audio Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
