Arrays, Signal Transformers
Review Arrays, Signal Transformers Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

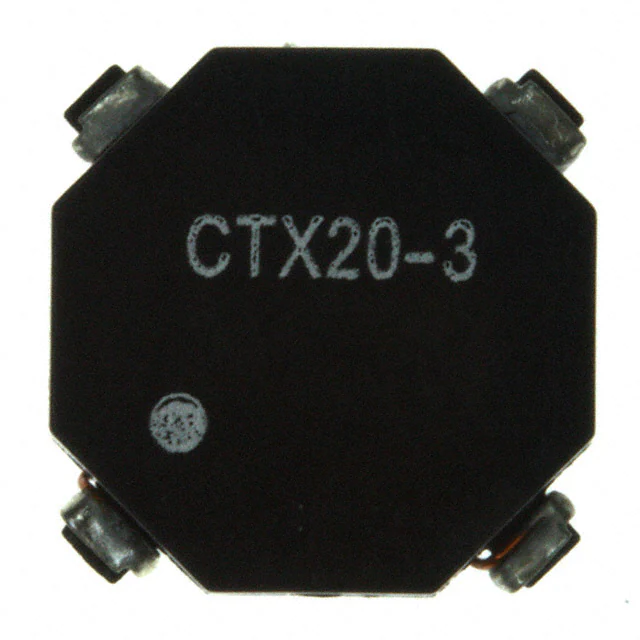

CTX20-3-RINDUCT ARRAY 2 COIL 20.18UH SMD |
2,881 |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 20.18 µH | 80.74 µH | ±20% | 1.5 A | 750 mA | - | - | 78mOhm Max | 312mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
CTX150-3P-RINDUCT ARRAY 2 COIL 149.85UH SMD |
1,801 |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 149.85 µH | 599.4 µH | ±20% | 640 mA | 320 mA | - | - | 621mOhm Max | 2.483Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
|
CTX150-3-RINDUCT ARRAY 2 COIL 149.78UH SMD |
3,361 |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 149.78 µH | 599.14 µH | ±20% | 380 mA | 190 mA | - | - | 430mOhm Max | 1.718Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
|
CTX15-3-RINDUCT ARRAY 2 COIL 15UH SMD |
2,401 |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 15 µH | 60 µH | ±20% | 2 A | 1 A | - | - | 43mOhm Max | 172mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
|
CTX25-3-RINDUCT ARRAY 2 COIL 24.58UH SMD |
4,925 |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 24.58 µH | 98.3 µH | ±20% | 980 mA | 490 mA | - | - | 86mOhm Max | 346mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
|
CTX300-3-RINDUCT ARRAY 2 COIL 301.06UH SMD |
4,423 |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 301.06 µH | 1.2 mH | ±20% | 400 mA | 200 mA | - | - | 951mOhm Max | 3.083Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
|
CTX50-3-RINDUCT ARRAY 2 COIL 50.78UH SMD |
2,337 |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 50.78 µH | 203.14 µH | ±20% | 940 mA | 470 mA | - | - | 239mOhm Max | 956mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
|
CTX68-3-RINDUCT ARRAY 2 COIL 67.42UH SMD |
1,420 |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 67.42 µH | 269.66 µH | ±20% | 800 mA | 400 mA | - | - | 277mOhm Max | 1.109Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
CTX100-3-RINDUCT ARRAY 2 COIL 101.4UH SMD |
3,086 |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 101.4 µH | 405.6 µH | ±20% | 700 mA | 350 mA | - | - | 345mOhm Max | 1.381Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
|
CTX25-2PINDUCT ARRAY 2 COIL 24.79UH SMD |
2,173 |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 24.79 µH | 99.14 µH | ±20% | 1.4 A | 700 mA | - | - | 109mOhm Max | 436mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
Frequently Asked Questions
What are Arrays, Signal Transformers components used for?
Arrays, Signal Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Arrays, Signal Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Arrays, Signal Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
