Arrays, Signal Transformers
Explore Arrays, Signal Transformers parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7448841100INDUCT ARRAY 2 COIL 10UH SMD |
7,768 |
|
Datasheet | WE-DPC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 10 µH | - | ±20% | 1.2 A | - | 1.5 A | - | 300mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.122" (3.10mm) |
|
|
7448841470INDUCT ARRAY 2 COIL 47UH SMD |
1,584 |
|
Datasheet | WE-DPC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 47 µH | - | ±20% | 600 mA | - | 700 mA | - | 1.2Ohm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.122" (3.10mm) |
|
744870680INDUCT ARRAY 2 COIL 68UH SMD |
1,782 |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 34 µH | 136 µH | ±20% | 1.35 A | 675 mA | 3 A | 1.5 A | 215mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
CTX33-1P-RINDUCT ARRAY 2 COIL 32.33UH SMD |
3,187 |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 32.33 µH | 129.32 µH | ±20% | 800 mA | 400 mA | - | - | 250mOhm Max | 1.001Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
|
7448709220INDUCT ARRAY 2 COIL 22UH SMD |
423 |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 11 µH | 44 µH | ±20% | 2.5 A | 1.25 A | 5 A | 2.5 A | 80mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
CTX10-4P-RINDUCT ARRAY 2 COIL 9.88UH SMD |
5,108 |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 9.88 µH | 39.53 µH | ±20% | 2.5 A | 1.25 A | - | - | 47mOhm Max | 187mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
CTX10-3-RINDUCT ARRAY 2 COIL 9.6UH SMD |
13,643 |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 9.6 µH | 38.4 µH | ±20% | 2.7 A | 1.35 A | - | - | 28mOhm Max | 111mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|

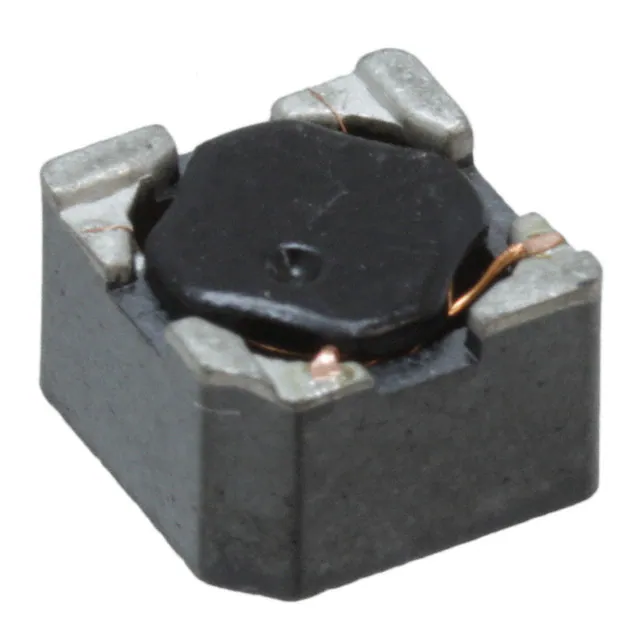

74488540250INDUCT ARRAY 2 COIL 25UH SMD |
1,558 |
|
Datasheet | WE-EHPI | Nonstandard | Tape & Reel (TR) | Active | 2 | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.161" (4.10mm) |
|
|
74488540070INDUCT ARRAY 2 COIL 7.5UH SMD |
364 |
|
Datasheet | WE-EHPI | Nonstandard | Tape & Reel (TR) | Active | 2 | - | - | ±20% | 1.9 A | - | - | - | - | - | Unshielded | - | -40°C ~ 125°C | Surface Mount | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.161" (4.10mm) |
|
|
74488540120INDUCT ARRAY 2 COIL 13UH SMD |
287 |
|
Datasheet | WE-EHPI | Nonstandard | Tape & Reel (TR) | Active | 2 | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.161" (4.10mm) |
|
SDQ25-150-RINDUCT ARRAY 2 COIL 14.79UH SMD |
2,302 |
|
Datasheet | SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 14.79 µH | 59.17 µH | ±20% | 1.24 A | 619 mA | 1.05 A | 523 mA | 163.2mOhm | 652.6mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
CTX20-2P-RINDUCT ARRAY 2 COIL 19.58UH SMD |
917 |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 19.58 µH | 78.34 µH | ±20% | 1.5 A | 750 mA | - | - | 97mOhm Max | 387mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
74485540101INDUCT ARRAY 2 COIL 10UH SMD |
782 |
|
Datasheet | WE-CFWI | 4-SMD | Tape & Reel (TR) | Active | 2 | 10 µH | - | ±20% | 13 A | - | 13.5 A | - | 13.9mOhm | - | Shielded | - | -40°C ~ 150°C | Surface Mount | 0.610" L x 0.520" W (15.50mm x 13.20mm) | 0.492" (12.50mm) |
|
CTX20-4P-RINDUCT ARRAY 2 COIL 20.62UH SMD |
579 |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 20.62 µH | 82.47 µH | ±20% | 1.9 A | 950 mA | - | - | 84mOhm Max | 337mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
CTX50-3P-RINDUCT ARRAY 2 COIL 50.02UH SMD |
1,788 |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 50.02 µH | 200.1 µH | ±20% | 920 mA | 460 mA | - | - | 277mOhm Max | 1.108Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
CTX5-1-RINDUCT ARRAY 2 COIL 4.9UH SMD |
1,179 |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.9 µH | 19.6 µH | ±20% | 2.3 A | 1.15 A | - | - | 30mOhm Max | 122mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
74485540220INDUCT ARRAY 2 COIL 2.2UH SMD |
3,499 |
|
Datasheet | WE-CFWI | 4-SMD | Tape & Reel (TR) | Active | 2 | 2.2 µH | 8.8 µH | ±20% | 18 A | 9 A | 35 A | 17.5 A | 6.72mOhm Max | - | Shielded | - | -40°C ~ 150°C | Surface Mount | 0.610" L x 0.520" W (15.50mm x 13.20mm) | 0.413" (10.50mm) |
|
CTX33-4A-RINDUCT ARRAY 2 COIL 34.8UH SMD |
2,492 |
|
Datasheet | OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 34.8 µH | 139.2 µH | ±25% | 2.49 A | 1.25 A | 2.25 A | 1.13 A | 71mOhm Max | 283mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
74485540170INDUCT ARRAY 2 COIL 1.7UH SMD |
303 |
|
Datasheet | WE-CFWI | 4-SMD | Tape & Reel (TR) | Active | 2 | 1.7 µH | 6.8 µH | ±20% | 21 A | 10.5 A | 39 A | 19.5 A | 5.28mOhm Max | - | Shielded | - | -40°C ~ 150°C | Surface Mount | 0.610" L x 0.520" W (15.50mm x 13.20mm) | 0.413" (10.50mm) |
|
|
74485540440INDUCT ARRAY 2 COIL 4.4UH SMD |
300 |
|
Datasheet | WE-CFWI | 4-SMD | Tape & Reel (TR) | Active | 2 | 4.4 µH | 17.6 µH | ±20% | 12 A | 6 A | 24 A | 12 A | 15.36mOhm Max | - | Shielded | - | -40°C ~ 150°C | Surface Mount | 0.610" L x 0.520" W (15.50mm x 13.20mm) | 0.413" (10.50mm) |
Frequently Asked Questions
What are Arrays, Signal Transformers components used for?
Arrays, Signal Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Arrays, Signal Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Arrays, Signal Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
