Arrays, Signal Transformers
Explore Arrays, Signal Transformers parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTX2-4-RINDUCT ARRAY 2 COIL 1.76UH SMD |
2,226 |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.76 µH | 7.06 µH | ±20% | 4.9 A | 2.45 A | - | - | 7mOhm Max | 28mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
CTX8-4-RINDUCT ARRAY 2 COIL 8.28UH SMD |
1,869 |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 8.28 µH | 33.12 µH | ±20% | 3.5 A | 1.75 A | - | - | 18mOhm Max | 72mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX200-4P-RINDUCT ARRAY 2 COIL 200.11UH SMD |
1,666 |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 200.11 µH | 800.44 µH | ±20% | 600 mA | 300 mA | - | - | 810mOhm Max | 3.24Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
LCP5-2.04-47INDUCT ARRAY 2 COIL 47UH SMD |
1,724 |
|
Datasheet | LCP | Nonstandard | Tape & Reel (TR) | Active | 2 | 47 µH | 188 µH | ±15% | 2.04 A | 1.02 A | - | - | 72mOhm | 288mOhm | Unshielded | - | -40°C ~ 125°C | Surface Mount | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.358" (9.10mm) |
|
|
CTX200-3P-RINDUCT ARRAY 2 COIL 200.1UH SMD |
2,625 |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 200.1 µH | 800.38 µH | ±20% | 600 mA | 300 mA | - | - | 731mOhm Max | 2.925Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
|
CTX20-1INDUCT ARRAY 2 COIL 19.6UH SMD |
2,951 |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 19.6 µH | 78.4 µH | ±20% | 1 A | 500 mA | - | - | 146mOhm Max | 583mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|

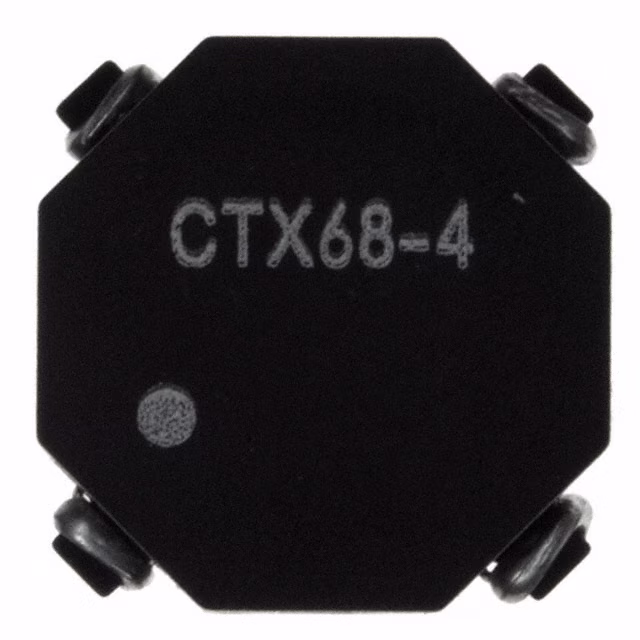

CTX68-4-RINDUCT ARRAY 2 COIL 67.08UH SMD |
1,882 |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 67.08 µH | 268.32 µH | ±20% | 1.2 A | 600 mA | - | - | 157mOhm Max | 630mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX100-1INDUCT ARRAY 2 COIL 99.23UH SMD |
3,559 |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 99.23 µH | 396.9 µH | ±20% | 440 mA | 220 mA | - | - | 784mOhm Max | 3.137Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
SDQ25-1R0-RINDUCT ARRAY 2 COIL 970NH SMD |
3,148 |
|
Datasheet | SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 970 nH | 3.87 µH | ±20% | 3.15 A | 1.58 A | 4.09 A | 2.05 A | 25.2mOhm | 100.7mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
|
T60405A6166X0026166X002 |
4,065 |
|
Datasheet | - | Radial, Vertical, 8 Leads | Box | Active | 2 | 12 µH | 48 µH | - | 15 A | 7.5 A | - | - | - | - | Unshielded | - | -40°C ~ 60°C | Through Hole | 1.496" L x 0.945" W (38.00mm x 24.00mm) | 1.626" (41.30mm) |
|
|
T60405A6166X0046166X004 |
1,881 |
|
Datasheet | - | Radial, Vertical, 4 Leads | Box | Active | 2 | 41 µH | 165 µH | - | 8 A | 4 A | - | - | - | - | Unshielded | - | -40°C ~ 60°C | Through Hole | 1.417" L x 0.866" W (36.00mm x 22.00mm) | 1.587" (40.30mm) |
|
|
CTX5-2INDUCT ARRAY 2 COIL 4.7UH SMD |
4,210 |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 4.7 µH | 18.8 µH | ±20% | 3 A | 1.5 A | - | - | 21mOhm Max | 84mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
|
CTX300-3P-RINDUCT ARRAY 2 COIL 298.39UH SMD |
2,407 |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 298.39 µH | 1.2 mH | ±20% | 500 mA | 250 mA | - | - | 926mOhm Max | 3.702Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
|
CTX5-4INDUCT ARRAY 2 COIL 4.9UH SMD |
2,407 |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 4.9 µH | 19.6 µH | ±20% | 4.4 A | 2.2 A | - | - | 14mOhm Max | 56mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
T60405A6166X0076166X007 |
3,814 |
|
Datasheet | - | Radial, Vertical, 4 Leads | Box | Active | 2 | 180 µH | 720 µH | - | 4 A | 2 A | - | - | - | - | Unshielded | - | -40°C ~ 60°C | Through Hole | 1.417" L x 0.827" W (36.00mm x 21.00mm) | 1.587" (40.30mm) |
|
|
T60405A6166X0056166X005 |
2,849 |
|
Datasheet | - | Radial, Vertical, 4 Leads | Box | Active | 2 | 75 µH | 300 µH | - | 6 A | 3 A | - | - | - | - | Unshielded | - | -40°C ~ 60°C | Through Hole | 1.417" L x 0.827" W (36.00mm x 21.00mm) | 1.587" (40.30mm) |
|
7448990010INDUCT ARRAY 2 COIL 1UH SMD |
1,802 |
|
Datasheet | WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 1 µH | - | ±20% | 17 A | - | 43.5 A | - | 5.6mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.354" (9.00mm) |
|
|
7448990015INDUCT ARRAY 2 COIL 1.5UH SMD |
3,466 |
|
Datasheet | WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.5 µH | - | ±20% | 12.5 A | - | 34 A | - | 9.4mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.354" (9.00mm) |
|
|
7448990022INDUCT ARRAY 2 COIL 2.2UH SMD |
2,924 |
|
Datasheet | WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.2 µH | - | ±20% | 11.5 A | - | 29.5 A | - | 12.5mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.354" (9.00mm) |
|
|
7448990033INDUCT ARRAY 2 COIL 3.3UH SMD |
3,224 |
|
Datasheet | WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 3.3 µH | - | ±20% | 7.5 A | - | 28.2 A | - | 26mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.354" (9.00mm) |
Frequently Asked Questions
What are Arrays, Signal Transformers components used for?
Arrays, Signal Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Arrays, Signal Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Arrays, Signal Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
