Arrays, Signal Transformers
Explore Arrays, Signal Transformers parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
76889430056INDUCTOR ARRAY 2 COIL 5.6UH SMD |
2,072 |
|
Datasheet | WE-TDC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 5.6 µH | - | ±20% | 1.4 A | - | 2 A | - | 234mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.083" (2.10mm) |
|
|
76889430100INDUCTOR ARRAY 2 COIL 10UH SMD |
1,015 |
|
Datasheet | WE-TDC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 10 µH | - | ±20% | 1.1 A | - | 1.67 A | - | 234mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.083" (2.10mm) |
|
|
76889430150INDUCTOR ARRAY 2 COIL 15UH SMD |
1,861 |
|
Datasheet | WE-TDC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 15 µH | - | ±20% | 0.95 A | - | 1.3 A | - | 422mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.083" (2.10mm) |
|
|
76889430220INDUCTOR ARRAY 2 COIL 22UH SMD |
1,261 |
|
Datasheet | WE-TDC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 22 µH | - | ±20% | 0.75 A | - | 1 A | - | 780mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.083" (2.10mm) |
|
76889440047INDUCTOR ARRAY 2 COIL 4.7UH SMD |
3,723 |
|
Datasheet | WE-TDC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.7 µH | - | ±20% | 2.45 A | - | 4.7 A | - | 110mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.161" (4.10mm) |
|
|
76889440150INDUCTOR ARRAY 2 COIL 15UH SMD |
1,833 |
|
Datasheet | WE-TDC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 15 µH | - | ±20% | 1.25 A | - | 2.8 A | - | 355mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.161" (4.10mm) |
|
|
76889440220INDUCTOR ARRAY 2 COIL 22UH SMD |
4,994 |
|
Datasheet | WE-TDC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 22 µH | - | ±20% | 1 A | - | 2.1 A | - | 455mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.161" (4.10mm) |
|
CTX0.47-1P-RINDUCT ARRAY 2 COIL 420NH SMD |
2,474 |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 420 nH | 1.67 µH | ±20% | 5.5 A | 2.75 A | - | - | 5mOhm Max | 21mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|

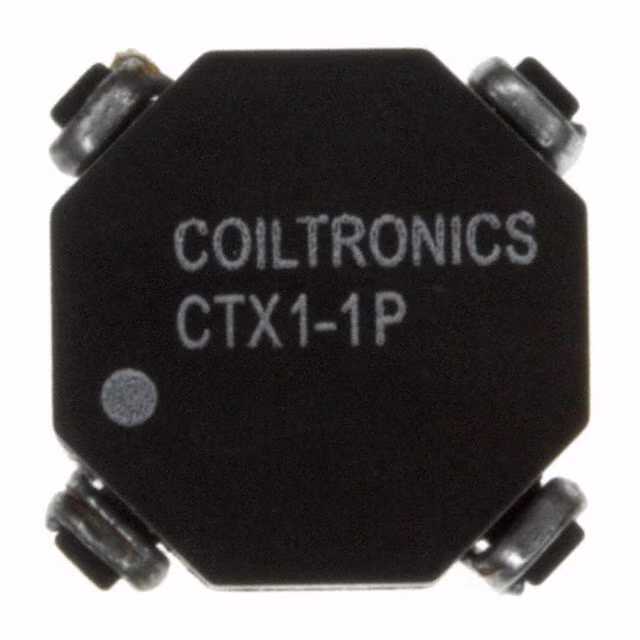

CTX1-1P-RINDUCT ARRAY 2 COIL 1.07UH SMD |
4,387 |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.07 µH | 4.28 µH | ±20% | 4.5 A | 2.25 A | - | - | 8mOhm Max | 32mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
|
CTX0.68-1P-RINDUCT ARRAY 2 COIL 600NH SMD |
1,514 |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 600 nH | 2.4 µH | ±20% | 5.1 A | 2.55 A | - | - | 6mOhm Max | 25mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
744889015100INDUCT ARRAY 2 COIL 10UH SMD |
1,409 |
|
Datasheet | WE-MTCI | Nonstandard | Tape & Reel (TR) | Active | 2 | 10 µH | - | ±20% | 0.95 A | - | 1.5 A | - | 600mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.122" (3.10mm) |
|
|
744889015220INDUCT ARRAY 2 COIL 22UH SMD |
1,502 |
|
Datasheet | WE-MTCI | Nonstandard | Tape & Reel (TR) | Active | 2 | 22 µH | - | ±20% | 0.6 A | - | 1 A | - | 1.2Ohm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.122" (3.10mm) |
|
|
744889015330INDUCT ARRAY 2 COIL 33UH SMD |
2,283 |
|
Datasheet | WE-MTCI | Nonstandard | Tape & Reel (TR) | Active | 2 | 33 µH | - | ±20% | 0.45 A | - | 0.75 A | - | 2.4Ohm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.122" (3.10mm) |
|
|
CTX2-1P-RINDUCT ARRAY 2 COIL 2.02UH SMD |
1,912 |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.02 µH | 8.08 µH | ±20% | 3.4 A | 1.7 A | - | - | 13mOhm Max | 54mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
7448841220INDUCT ARRAY 2 COIL 22UH SMD |
2,296 |
|
Datasheet | WE-DPC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 22 µH | - | ±20% | 800 mA | - | 1 A | - | 650mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.122" (3.10mm) |
|
|
7448841015INDUCT ARRAY 2 COIL 1.5UH SMD |
1,709 |
|
Datasheet | WE-DPC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.5 µH | - | ±30% | 2.7 A | - | 3.7 A | - | 68mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.122" (3.10mm) |
|
|
7448841082INDUCT ARRAY 2 COIL 8.2UH SMD |
1,813 |
|
Datasheet | WE-DPC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 8.2 µH | - | ±30% | 1.3 A | - | 1.6 A | - | 265mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.122" (3.10mm) |
|
SDQ25-4R7-RINDUCT ARRAY 2 COIL 5UH SMD |
2,935 |
|
Datasheet | SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 5 µH | 20 µH | ±20% | 1.96 A | 980 mA | 1.8 A | 900 mA | 65.3mOhm | 261.2mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
|
SDQ25-R47-RINDUCT ARRAY 2 COIL 392NH SMD |
4,239 |
|
Datasheet | SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 392 nH | 1.57 µH | ±30% | 3.71 A | 1.86 A | 6.43 A | 3.21 A | 18.1mOhm | 72.5mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
|
SDQ25-R82-RINDUCT ARRAY 2 COIL 648NH SMD |
3,392 |
|
Datasheet | SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 648 nH | 2.59 µH | ±30% | 3.37 A | 1.68 A | 5 A | 2.5 A | 22.1mOhm | 88.3mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
Frequently Asked Questions
What are Arrays, Signal Transformers components used for?
Arrays, Signal Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Arrays, Signal Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Arrays, Signal Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
