Arrays, Signal Transformers
Review Arrays, Signal Transformers Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PF0552.683NLINDUCT ARRAY 2 COIL 68UH SMD |
1,010 |
|
Datasheet | PF0552NL | Nonstandard | Tray | Active | 2 | 68 µH | 270 µH | ±20% | 2.8 A | 1.4 A | 2.7 A | 1.4 A | 100mOhm Max | 400mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
PF0553.153NLTINDUCT ARRAY 2 COIL 14UH SMD |
2,039 |
|
Datasheet | PF0553NL | Nonstandard | Tape & Reel (TR) | Active | 2 | 14 µH | 56 µH | ±20% | 5 A | 2.5 A | 9.6 A | 4.8 A | 24mOhm Max | 96mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
PF0552.223NLTINDUCT ARRAY 2 COIL 22UH SMD |
1,720 |
|
Datasheet | PF0552NL | Nonstandard | Tape & Reel (TR) | Active | 2 | 22 µH | 89 µH | ±20% | 4.6 A | 2.3 A | 4.8 A | 2.4 A | 35mOhm Max | 140mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
P0395NLINDUCT ARRAY 2 COIL 2.2UH SMD |
1,145 |
|
Datasheet | Tomcat | Nonstandard | Tube | Active | 2 | 2.2 µH | 9 µH | ±20% | 14.4 A | 7.2 A | - | - | 4.41mOhm | 17.6mOhm | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.715" L x 0.590" W (18.16mm x 14.99mm) | 0.310" (7.87mm) |
|
|
P0401NLINDUCT ARRAY 2 COIL 27.4UH SMD |
1,008 |
|
Datasheet | Tomcat | Nonstandard | Tube | Active | 2 | 27.4 µH | 109.8 µH | ±20% | 4.4 A | 2.2 A | - | - | 38.15mOhm | 152.6mOhm | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.715" L x 0.590" W (18.16mm x 14.99mm) | 0.310" (7.87mm) |
|

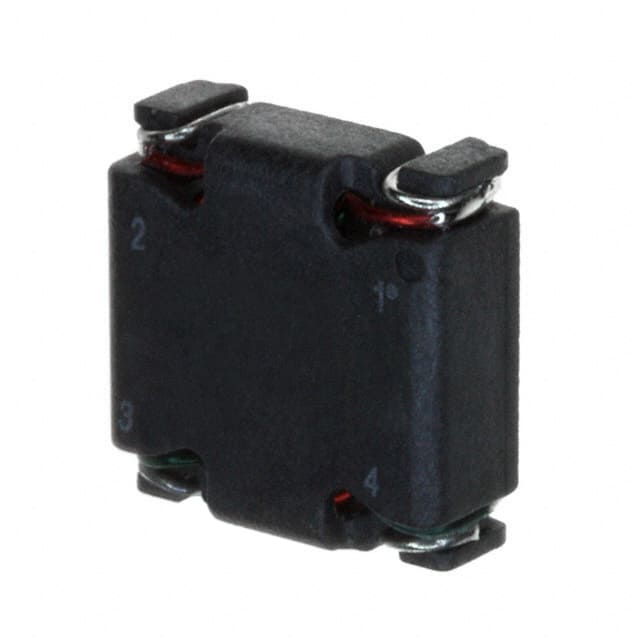

P0174NLINDUCT ARRAY 2 COIL 2.2UH SMD |
230 |
|
Datasheet | Polecat | Nonstandard | Tube | Active | 2 | 2.2 µH | 8.75 µH | ±10% | 8.3 A | 4.16 A | - | - | 7.6mOhm Max | 32mOhm Max | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
|
P0181NLINDUCT ARRAY 2 COIL 47.6UH SMD |
537 |
|
Datasheet | Polecat | Nonstandard | Tube | Active | 2 | 47.6 µH | 190.3 µH | ±10% | 1.8 A | 890 mA | - | - | 151mOhm Max | 604mOhm Max | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
|
PF0553.472NLINDUCT ARRAY 2 COIL 4.8UH SMD |
1,550 |
|
Datasheet | PF0553NL | Nonstandard | Tray | Active | 2 | 4.8 µH | 19 µH | ±20% | 8.1 A | 4.1 A | 16 A | 8.2 A | 9.2mOhm Max | 37mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.343" (8.71mm) |
|
|
PF0553.683NLINDUCT ARRAY 2 COIL 66UH SMD |
1,550 |
|
Datasheet | PF0553NL | Nonstandard | Tray | Active | 2 | 66 µH | 270 µH | ±20% | 2.4 A | 1.2 A | 4.4 A | 2.2 A | 110mOhm Max | 420mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.343" (8.71mm) |
|
|
PF0553.153NLINDUCT ARRAY 2 COIL 14UH SMD |
1,545 |
|
Datasheet | PF0553NL | Nonstandard | Tray | Active | 2 | 14 µH | 56 µH | ±20% | 5 A | 2.5 A | 9.6 A | 4.8 A | 24mOhm Max | 96mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.343" (8.71mm) |
Frequently Asked Questions
What are Arrays, Signal Transformers components used for?
Arrays, Signal Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Arrays, Signal Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Arrays, Signal Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
