Angle, Linear Position Measuring
Explore Angle, Linear Position Measuring parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECS78RBA102SFERNICE TRANSDUCERS |
4,882 |
|
Datasheet | Module, Round Shaft | - | Bulk | Active | - | Rotary Position | Resistive | 0° ~ 360°, Continuous | - | Resistive | Clockwise Increase | Round Shaft | ±1% | 1 kOhms | ±20% | - | Panel Mount | Solder Turret | -55°C ~ 125°C | - | - | - |
|
ECS78RBA502SFERNICE TRANSDUCERS |
3,628 |
|
Datasheet | Module, Round Shaft | ECS | Bulk | Active | - | Rotary Position | Resistive | 0° ~ 360°, Continuous | - | Resistive | Clockwise Increase | Shaft | ±2% | 5 kOhms | ±20% | - | Panel Mount | Solder Turret | -55°C ~ 125°C | - | - | - |
|
|
PST360G2-2AA-C0123-ERA040-05KHALL-EFFECT POSITION SENSOR (THO |
1,689 |
|
Datasheet | Box with Wire Leads | PST360G2 | Bulk | Active | - | Angle, Linear, Rotary | Hall Effect | 0° ~ 40° | - | Analog Voltage | Clockwise Increase | - | ±1% | - | - | 4.5V ~ 5.5V | Chassis Mount | Wire Leads | -40°C ~ 125°C | - | - | - |
|
981HE0B4WA1F16SENSOR ROTARY 360DEG WIRE LEADS |
3,754 |
|
Datasheet | Module, Flatted Shaft | - | Bulk | Active | - | Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±0.5% | - | - | 4.5V ~ 5.5V | Chassis Mount | Wire Leads | -45°C ~ 125°C | - | - | - |
|
RTY180LVNAXSENSOR ROTARY 180DEG CONNECTOR |
207 |
|
Datasheet | Box with Connector | RTY | Bulk | Active | - | Rotary Position | Hall Effect | 180° (±90°), Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1% | - | - | 5V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
9851R5KL2.0SENSOR ROTARY 120 DEG CONNECTOR |
4,846 |
|
Datasheet | Box with Connector | 9850 Gen II | Bulk | Active | - | Rotary Position | Resistive | 0° ~ 85°, 0° ~ 120° | - | Resistive | - | Hole for Shaft | ±2% | 5 kOhms | ±20% | - | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
RTY090LVNAASENSOR ROTARY 90DEG CONNECTOR |
1,602 |
|
Datasheet | Box with Connector | RTY | Bulk | Active | - | Rotary Position | Hall Effect | 90° (±45°), Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1% | - | - | 5V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
|
RTY360LVNAXSENSOR ROTARY 360DEG CONNECTOR |
1,160 |
|
Datasheet | Box with Connector | RTY | Bulk | Active | - | Rotary Position | Hall Effect | 360° (±180°), Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1% | - | - | 5V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
9812R5KL2.0SENSOR ROTARY CONNECTOR |
121 |
|
Datasheet | Box with Connector | 9800 | Box | Active | - | Rotary Position | Resistive | - | - | Resistive | - | Hole for Shaft | ±2% | 5 kOhms | - | - | Chassis Mount | Connector | - | - | - | - |
|
|
RTY090HVNAXSENSOR ROTARY 90DEG CONNECTOR |
1,365 |
|
Datasheet | Box with Connector | RTY | Bulk | Active | - | Rotary Position | Hall Effect | 90° (±45°), Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1% | - | - | 10V ~ 30V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
93620901HALL EFFECT ROTARY SENSOR |
1,830 |
|
Datasheet | Box with Connector | 9360 | Bag | Active | - | Rotary Position | Hall Effect | 90° (±45°) | - | Analog Voltage, PWM | Counterclockwise Increase | Flatted Shaft | - | - | - | 4.75V ~ 5.25V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
|
PSC360G2-F1J-C0000-ERA360-RECOMPACT ROTARY SENSOR, 12 BIT AB |
3,099 |
|
Datasheet | Module, Flatted Shaft | PSC360G2 | Bulk | Active | - | Angle, Linear, Rotary | Hall Effect | 0° ~ 360° | - | CAN | Clockwise Increase | Flatted Shaft | ±1% | - | - | 4.5V ~ 5.5V | Panel Mount | Wire Leads | -40°C ~ 125°C | - | - | - |
|

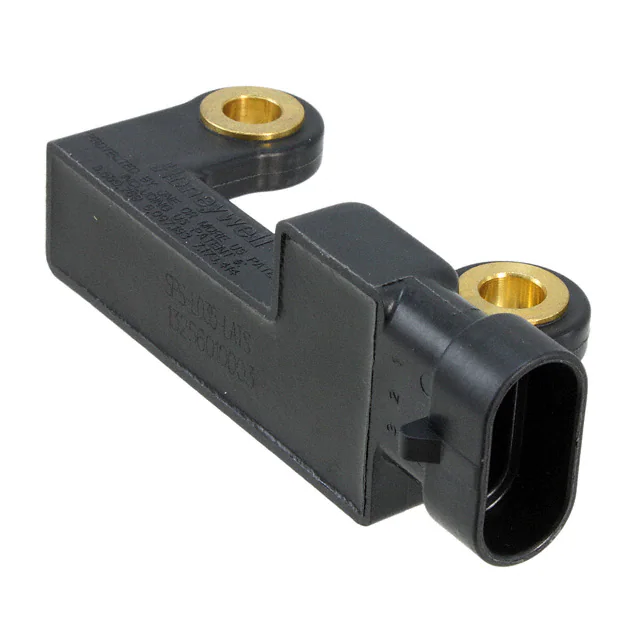

SPS-L035-LATSSENSOR LINEAR 35MM CONNECTOR |
3,140 |
|
Datasheet | Box with Connector | SPS | Bulk | Active | - | Linear Position | Magnetoresistive | - | 0 ~ 35.00mm (0 ~ 1.38") | Analog Voltage | - | External Magnet, Included | ±1% | - | - | 4.75V ~ 5.25V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
SPS-L225-HALSSENSOR LINEAR 225MM WIRE LEAD |
283 |
|
Datasheet | Box with Wire Leads | SPS | Box | Active | - | Linear Position | Magnetoresistive | - | 0 ~ 225.00mm (0 ~ 8.86") | Analog Voltage | - | External Magnet, Included | ±0.4% | - | - | 6V ~ 24V | Chassis Mount | Wire Leads | -40°C ~ 125°C | - | - | - |
|
|
LX34070-H/STHIGH SPEED INDUCTIVE POSITION SE |
3,282 |
|
Datasheet | 14-TSSOP (0.173", 4.40mm Width) | - | Tube | Active | - | - | Inductive | - | - | - | Cosine, Sine | Inductive Target | - | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C | - | - | 14-TSSOP |
|
A33230LLHALT-XY-S-AR-103D HALL-EFFECT SENSOR IC WITH SI |
13,684 |
|
Datasheet | SOT-23-5 Thin, TSOT-23-5 | - | Tape & Reel (TR) | Active | - | Rotary Position | Hall Effect | - | - | Analog Voltage | Cosine, Sine | External Magnet, Not Included | - | 8 kOhms | - | 4.5V ~ 5.5V | Surface Mount | - | -40°C ~ 150°C | - | - | SOT-23W-5 |
|
|
A33230LLHALT-XZ-S-AR-033D HALL-EFFECT SENSOR IC WITH SI |
2,674 |
|
Datasheet | SOT-23-5 Thin, TSOT-23-5 | - | Tape & Reel (TR) | Active | - | Rotary Position | Hall Effect | - | - | Analog Voltage | Cosine, Sine | External Magnet, Not Included | - | 8 kOhms | - | 4.5V ~ 5.5V | Surface Mount | - | -40°C ~ 150°C | - | - | SOT-23W-5 |
|
|
A33230LLHALT-XZ-S-AR-103D HALL-EFFECT SENSOR IC WITH SI |
2,463 |
|
Datasheet | SOT-23-5 Thin, TSOT-23-5 | - | Tape & Reel (TR) | Active | - | Rotary Position | Hall Effect | - | - | Analog Voltage | Cosine, Sine | External Magnet, Not Included | - | 8 kOhms | - | 4.5V ~ 5.5V | Surface Mount | - | -40°C ~ 150°C | - | - | SOT-23W-5 |
|
3382G-1-503GSENSOR ROTARY 330DEG SMD |
781 |
|
Datasheet | 4-SMD, Gull Wing | - | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | 0° ~ 330°, Continuous | - | Resistive | Clockwise Increase | Hole for Shaft | ±2% | 50 kOhms | ±30% | - | Surface Mount | SMD (SMT) Tab | -40°C ~ 120°C | - | - | - |
|
|
3382G-1-252GSENSOR ROTARY 330DEG SMD |
685 |
|
Datasheet | 4-SMD, Gull Wing | - | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | 0° ~ 330°, Continuous | - | Resistive | Clockwise Increase | Hole for Shaft | ±2% | 2.5 kOhms | ±30% | - | Surface Mount | SMD (SMT) Tab | -40°C ~ 120°C | - | - | - |
Frequently Asked Questions
What are Angle, Linear Position Measuring components used for?
Angle, Linear Position Measuring components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Angle, Linear Position Measuring part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Angle, Linear Position Measuring parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
