Angle, Linear Position Measuring
Review Angle, Linear Position Measuring Position Sensors components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

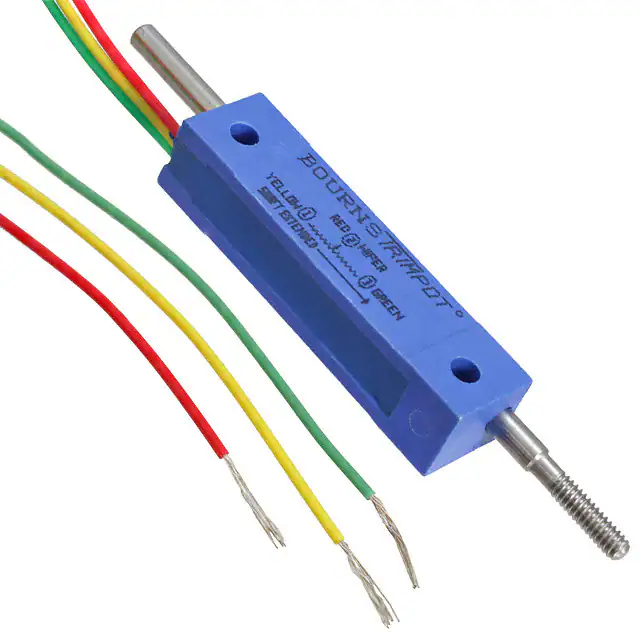

3048L-4-502SENSOR LINEAR 10.16MM WIRE LEADS |
3,686 |
|
Datasheet | Module, Wire Leads, Threaded | - | Tray | Active | - | Linear Position | Resistive | - | 0 ~ 10.16mm (0 ~ 0.40") | Resistive | - | Round Shaft | ±5% | 5 kOhms | ±20% | - | Chassis Mount | Wire Leads | -55°C ~ 125°C | - | - | - |
|

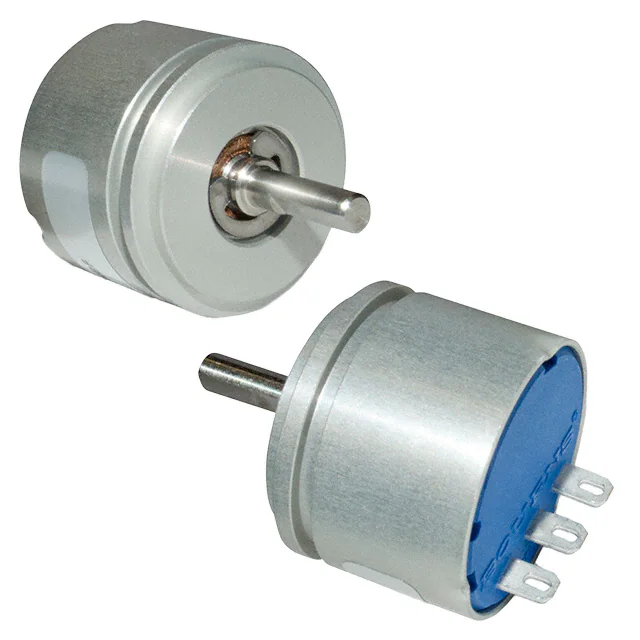

AMS22S5A1BHBFL336SENSOR ROTARY 360DEG SOLDER LUG |
3,671 |
|
Datasheet | Module, Flatted Shaft | AMS22S | Tray | Active | - | Rotary Position | Hall Effect | 10° ~ 360°, Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±0.5% | - | - | 5V | Panel Mount | Solder Lug | -40°C ~ 125°C | - | - | - |
|
AMS22B5A1BLASL334SSENSOR ROTARY 340DEG SOLDER LUG |
4,136 |
|
Datasheet | Module, Slotted Shaft | AMS22B | Tray | Active | - | Rotary Position | Hall Effect | 10° ~ 340°, Continuous | - | Analog Voltage | Clockwise Increase | Slotted Shaft | ±0.5% | - | - | 5V | Panel Mount | Solder Lug | -40°C ~ 125°C | - | - | - |
|
3382H-2-502SENSOR ROTARY 330DEG PC PIN |
3,123 |
|
Datasheet | Module, PC Pins | - | Tube | Active | - | Rotary Position | Resistive | 0° ~ 330°, Continuous | - | Resistive | Clockwise Increase | Hole for Shaft | ±2% | 5 kOhms | ±30% | - | Through Hole | PC Pin | -40°C ~ 120°C | - | - | - |
|
|
3382H-1-253SENSOR ROTARY 330DEG PC PIN |
3,985 |
|
Datasheet | Module, PC Pins | - | Tube | Active | - | Rotary Position | Resistive | 0° ~ 330°, Continuous | - | Resistive | Clockwise Increase | Hole for Shaft | ±2% | 25 kOhms | ±30% | - | Through Hole | PC Pin | -40°C ~ 120°C | - | - | - |
|
3046L-1-102SENSOR LINEAR 3.81MM WIRE LEADS |
2,299 |
|
Datasheet | Module, Wire Leads, Threaded | - | Tray | Active | - | Linear Position | Resistive | - | 0 ~ 3.81mm (0 ~ 0.15") | Resistive | - | Round Shaft | ±5% | 1 kOhms | ±20% | - | Chassis Mount | Wire Leads | -55°C ~ 125°C | - | - | - |
|
|
3046L-1-203SENSOR LINEAR 3.81MM WIRE LEADS |
1,724 |
|
Datasheet | Module, Wire Leads, Threaded | - | Tray | Active | - | Linear Position | Resistive | - | 0 ~ 3.81mm (0 ~ 0.15") | Resistive | - | Round Shaft | ±5% | 20 kOhms | ±20% | - | Chassis Mount | Wire Leads | -55°C ~ 125°C | - | - | - |
|
|
3046L-3-102SENSOR LINEAR 8.89MM WIRE LEADS |
4,583 |
|
Datasheet | Module, Wire Leads, Threaded | - | Tray | Active | - | Linear Position | Resistive | - | 0 ~ 8.89mm (0 ~ 0.35") | Resistive | - | Round Shaft | ±5% | 1 kOhms | ±20% | - | Chassis Mount | Wire Leads | -55°C ~ 125°C | - | - | - |
|
AMM20B5A1CLASL380SENSOR ROTARY 3960DEG PC PIN |
1,302 |
|
Datasheet | Module, Slotted Shaft | AMM20B | Tray | Active | - | Rotary Position | Hall Effect | 0° ~ 3600°, 0° ~ 3960° | - | Analog Voltage | Clockwise Increase | Slotted Shaft | ±0.3% | - | - | 5V | Panel Mount | PC Pin | -40°C ~ 125°C | - | - | - |
|
3048L-2-503SENSOR LINEAR 5.08MM WIRE LEADS |
3,827 |
|
Datasheet | Module, Wire Leads, Threaded | - | Tray | Active | - | Linear Position | Resistive | - | 0 ~ 5.08mm (0 ~ 0.20") | Resistive | - | Round Shaft | ±5% | 50 kOhms | ±20% | - | Chassis Mount | Wire Leads | -55°C ~ 125°C | - | - | - |
Frequently Asked Questions
What are Angle, Linear Position Measuring components used for?
Angle, Linear Position Measuring components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Angle, Linear Position Measuring part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Angle, Linear Position Measuring parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
