Angle, Linear Position Measuring
Review Angle, Linear Position Measuring Position Sensors components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EM3242SENSOR ANGLE 360DEG SMD |
2,664 |
|
Datasheet | 6-TSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Obsolete | - | Angle | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | - | External Magnet, Not Included | - | - | - | 2.7V ~ 3.3V | Surface Mount | SMD (SMT) Tab | -30°C ~ 85°C | - | - | 6-SOP |
|
AK7401SENSOR ROTARY 360DEG |
3,591 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | - | Rotary Position | Hall Effect | 0° ~ 360° | - | SPI | Programmable | External Magnet, Not Included | ±0.95° | - | - | 4V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C | Automotive | AEC-Q100 | 8-SOP |
|
AK7451SENSOR ANGLE 360DEG SMD |
2,519 |
|
Datasheet | 16-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | - | Angle | Hall Effect | 0° ~ 360°, Continuous | - | SPI | Logic | External Magnet, Not Included | ±0.6° | - | - | 4.5V ~ 5.5V | Surface Mount | SMD (SMT) Tab | -40°C ~ 125°C | - | - | 16-SOP |
|
AK7452SENSOR ANGLE 360DEG SOLDER |
3,087 |
|
Datasheet | 16-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Obsolete | - | Angle | Hall Effect | 360° (±180°), Continuous | - | Analog Voltage | - | External Magnet, Not Included | ±0.5° | - | - | 3V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 125°C | - | - | 16-TSSOP |
|

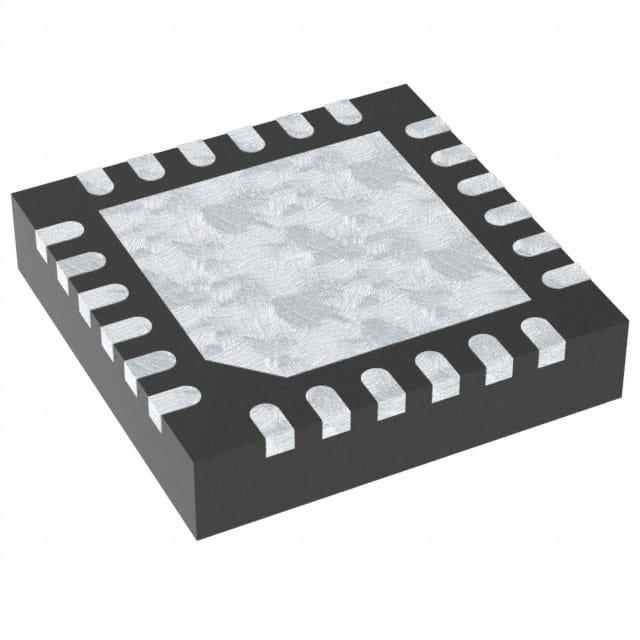

AK7454IC ANGLE SENSOR 360 DEGREE |
3,199 |
|
Datasheet | 24-VFQFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | - | Angle | Hall Effect | 0° ~ 360°, Continuous | - | SPI | Logic | External Magnet, Not Included | - | - | - | 3V ~ 5.5V | Surface Mount | SMD (SMT) Tab | -40°C ~ 125°C | - | - | 24-QFN (4x4) |
Frequently Asked Questions
What are Angle, Linear Position Measuring components used for?
Angle, Linear Position Measuring components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Angle, Linear Position Measuring part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Angle, Linear Position Measuring parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
