Angle, Linear Position Measuring
Review Angle, Linear Position Measuring Position Sensors components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECS78RBA102SFERNICE TRANSDUCERS |
4,882 |
|
Datasheet | Module, Round Shaft | - | Bulk | Active | - | Rotary Position | Resistive | 0° ~ 360°, Continuous | - | Resistive | Clockwise Increase | Round Shaft | ±1% | 1 kOhms | ±20% | - | Panel Mount | Solder Turret | -55°C ~ 125°C | - | - | - |
|

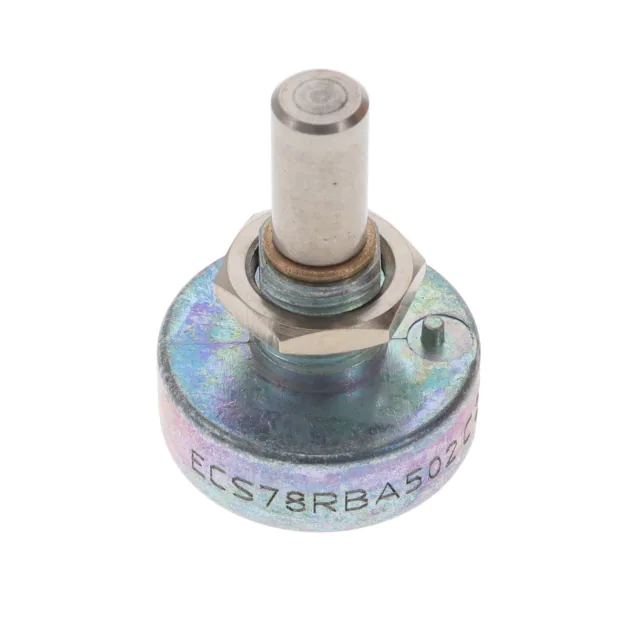

ECS78RBA502SFERNICE TRANSDUCERS |
3,628 |
|
Datasheet | Module, Round Shaft | ECS | Bulk | Active | - | Rotary Position | Resistive | 0° ~ 360°, Continuous | - | Resistive | Clockwise Increase | Shaft | ±2% | 5 kOhms | ±20% | - | Panel Mount | Solder Turret | -55°C ~ 125°C | - | - | - |
|
981HE0B4WA1F16SENSOR ROTARY 360DEG WIRE LEADS |
3,754 |
|
Datasheet | Module, Flatted Shaft | - | Bulk | Active | - | Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±0.5% | - | - | 4.5V ~ 5.5V | Chassis Mount | Wire Leads | -45°C ~ 125°C | - | - | - |
|
34THES2BTA0P22SENSOR ROTARY 3600DEG SLD TURRET |
4,752 |
|
Datasheet | Module | - | Bulk | Active | - | Rotary Position | Hall Effect | 0° ~ 3600°, Continuous | - | Analog Voltage | Clockwise Increase | Round Shaft | ±0.5% | - | - | 5V | Panel Mount | Solder Turret | -40°C ~ 85°C | - | - | - |
|
351HE0B4WA1S22SENSOR ROTARY 360DEG WIRE LEADS |
1,621 |
|
Datasheet | Module, Slotted Shaft | - | Bulk | Active | - | Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | Clockwise Increase | Slotted Shaft | ±0.5% | - | - | 4.5V ~ 5.5V | Chassis Mount | Wire Leads | -45°C ~ 125°C | - | - | - |
|
20LHE1AWA1P30SENSOR LINEAR 10.16MM WIRE LEADS |
4,885 |
|
Datasheet | Module, Wire Leads | - | Box | Active | - | Linear Position | Hall Effect | - | 0 ~ 10.16mm (0 ~ 0.40") | Analog Voltage | - | Round Shaft | ±1% | - | - | 5V | Chassis Mount | Wire Leads | -40°C ~ 85°C | - | - | - |
|
UIPMA250I472XCBSENSOR LINEAR 250MM WIRE LEAD |
4,286 |
|
Datasheet | Sensor Strip | - | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 250.00mm (0 ~ 9.84") | Resistive | - | Flexible Membrane - Linear | ±2% | 4.7 kOhms | ±30% | - | Chassis Mount | Wire Leads | -10°C ~ 50°C | - | - | - |
|
UIPMA050I472XCBSENSOR LINEAR 50MM WIRE LEADS |
2,898 |
|
Datasheet | Sensor Strip | - | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 50.00mm (0 ~ 1.97") | Resistive | - | Flexible Membrane - Linear | ±2% | 4.7 kOhms | ±30% | - | Chassis Mount | Wire Leads | -10°C ~ 50°C | - | - | - |
|
|
ECS78RBA103SFERNICE TRANSDUCERS |
1,226 |
|
Datasheet | Module, Round Shaft | ECS | Bulk | Active | - | Rotary Position | Resistive | 0° ~ 360°, Continuous | - | Resistive | Clockwise Increase | Shaft | ±2% | 10 kOhms | ±20% | - | Panel Mount | Solder Turret | -55°C ~ 125°C | - | - | - |
|
981HE2B1WA1F16SENSOR ROTARY 90DEG WIRE LEADS |
2,856 |
|
Datasheet | Module, Flatted Shaft | - | Bulk | Active | - | Rotary Position | Hall Effect | 0° ~ 90° | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±0.5% | - | - | 4.5V ~ 5.5V | Chassis Mount | Wire Leads | -45°C ~ 125°C | - | - | - |
Frequently Asked Questions
What are Angle, Linear Position Measuring components used for?
Angle, Linear Position Measuring components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Angle, Linear Position Measuring part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Angle, Linear Position Measuring parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
